Airbag controller with Safing MOSFET

Airbags have been a standard feature in passenger cars for over 20 years. Naturally these systems need to be extremely robust and reliable, regardless of whether it is just a single airbag for the driver and front passenger or a complete multi-stage airbag system offering a range of protection options (front, side, head, rollover and even pedestrian protection). A Safing MOSFET in series with firing circuit transistors provides cost-effective operational reliability, enabling breakage of the current circuit in case of incorrect operation due to malfunction or electrical noise.

  • 概述

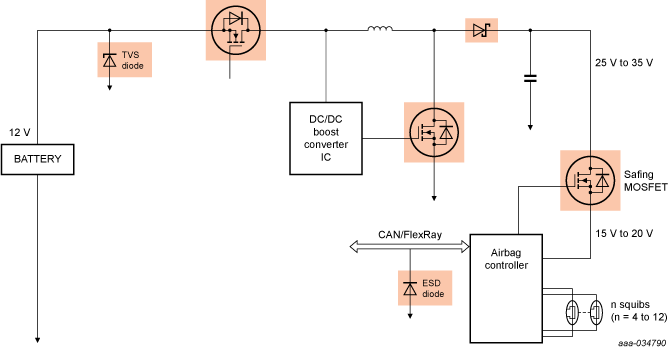

功能框图

Highlighted components are Nexperia focus products

产品

  • Safing MOSFET: ASFETs for Airbags, LFPAK33 / 56
  • DC-DC boost low side switch: MOSFET, 60 V, LFPAK33
  • DC-DC freewheeling: Schottky rectifier, 60 – 100 V, CFP
  • ESD:CAN / LIN总线保护
  • ESD:TVS,400 W / 600 W
  • Reverse battery protection: MOSFET, 40 V, LFPAK33/56

设计考虑因素

  • 完整360度检测需要各种雷达选件和多个传感器,因此空间极为有限
  • 使用“邮票”雷达传感器模块以节省整个系统空间
  • 使用CFP和LFPAK封装以节省空间、提高热效率和系统稳健性
