Analog Devices EVAL-LTC4286-A1Z Hotswap

A fully featured evaluation board for the Analog Devices LTC4286 High Power Positive Hot-Swap Controller. This 54 V, 36 A hot-swap design provides a clear example of all the peripheral components for the hot-swap power path including Nexperia's 100 V, 2.3 mOhm PSMN2R3-100SSE ASFET with enhanced SOA in LFPAK88.

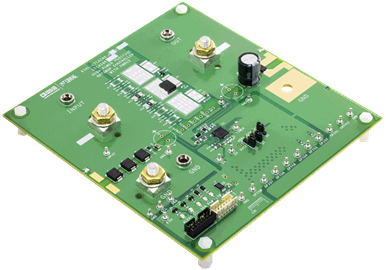

PCB view

Products

Hotwap ASFET (on board): PSMN2R3-100SSE

Documents

MOSFETs with a strong linear mode performance and enhanced safe operating area (SOA) are required to manage the in-rush current effectively and reliably
PSMN2R3-100SSE delivers very low R_DSon and enhanced safe operating area performance in a high-reliability copper-clip LFPAK88 package
Nexperia offers a growing range of dedicated ASFETs for Hotswap and Soft Start
