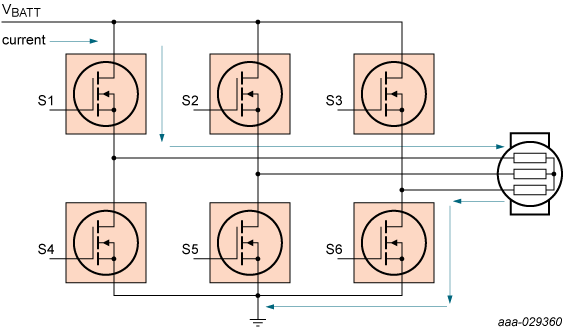

用于直流电机控制的ASFET专为满足一系列直流电机的需求而设计：
- ID最大——可在故障条件下或高扭矩启动情况下提供保护
- 并联均流技术——适用于48 V高功率多节应用，如高尔夫球车和叉车
- VDS 50-55 V——针对越来越多的36 V直流电机优化，不管是电锯和绿篱修剪机，还是电动自行车和滑板车，都要用到这种电机
- 封装尺寸范围——适用于在空间受限或具有热挑战性的环境中运行的电机
精选产品
最新新闻和博客
最新视频
参数搜索
ASFETs for DC Motor Control
数据加载中，请稍候...参数搜索不可用。
产品
| 型号 | 描述 | 状态 | 快速访问 |
|---|---|---|---|
| PSMN013-40VLD | Dual N-channel 40 V, 13 mOhm standard level MOSFET in LFPAK56D (half-bridge configuration) | Production | |
| PSMN0R9-30ULD | N-channel 30 V, 0.87 mΩ, 300 A logic level MOSFET in SOT1023A enhanced package for UL2595, using NextPowerS3 Schottky-Plus Technology | Production | |
| PSMN0R9-30YLD | N-channel 30 V, 0.87 mΩ, 300 A logic level MOSFET in LFPAK56 using NextPowerS3 Technology | Production | |
| PSMN1R0-40ULD | N-channel 40 V, 1.1 mΩ, 280 A logic level MOSFET in SOT1023A enhanced package for UL2595, using NextPower-S3 Schottky-Plus technology | Production | |
| PSMN1R4-30YLD | N-channel 30 V, 1.4 mΩ logic level MOSFET in LFPAK56 using NextPowerS3 Technology | Production | |
| PSMN1R5-50YLH | N-channel 50 V, 1.7 mOhm, 200 A continuous, logic level MOSFET in LFPAK56E using NextPower-S3 technology | Production | |
| PSMN1R6-30MLH | N-channel 30 V, 1.9 mΩ, 160 A logic level MOSFET in LFPAK33 using NextPowerS3 technology | Production | |
| PSMN1R7-40YLD | N-channel 40 V, 1.8 mΩ, 200 A logic level MOSFET in LFPAK56 using NextPower-S3 Schottky-Plus technology | Production | |
| PSMN2R0-55YLH | N-channel 55 V, 2.2 mOhm, 200 A continuous, logic level MOSFET in LFPAK56E using NextPower-S3 technology | Production | |
| PSMN2R4-30YLD | N-channel 30 V, 2.4 mΩ logic level MOSFET in LFPAK56 using NextPowerS3 Technology | Production | |
| PSMN4R0-60YS | N-channel LFPAK 60 V, 4.0 mΩ standard level FET | Production | |
| PSMN4R1-60YL | N-channel 60 V, 4.1 mΩ logic level MOSFET in LFPAK56 | Production | |
| PSMN4R2-40VSH | Dual N-channel 40 V, 4.2 mOhm standard level MOSFET in LFPAK56D (half-bridge configuration) | Production | |
| PSMN5R5-60YS | N-channel LFPAK 60 V, 5.2 mΩ standard level FET | Production | |
| PSMN6R9-100YSF | NextPower 100 V, 7 mΩ N-channel MOSFET in LFPAK56 package | Production | |
| PSMN8R7-100YSF | NextPower 100 V, 9 mΩ N-channel MOSFET in LFPAK56 package | Production |
Visit our documentation center for all documentation
Application note (3) |
|||
|---|---|---|---|
| 文件名称 | 标题 | 类型 | 日期 |
| AN50004 | Using power MOSFETs in DC motor control applications | Application note | 2021-03-02 |
| AN90016 | Maximum continuous currents in NEXPERIA LFPAK power MOSFETs | Application note | 2020-09-03 |
| AN90001 | Designing in MOSFETs for safe and reliable gate-drive operation | Application note | 2017-05-05 |
Selection guide (1) |
|||
| 文件名称 | 标题 | 类型 | 日期 |
| Nexperia_Selection_guide_2021 | Nexperia Selection Guide 2021 | Selection guide | 2021-01-08 |
