NPS3005 0.5 V至5.5 V、6 A、15 mΩ、带软启动评估板的单通道负载开关
NEVB-NPS3005是一个包含NPS3005负载开关器件的双层PCB。它允许用户探索器件在各种应用条件下的行为。
主要特性与优势
- 输入电压范围：0.5 V至5.5 V
- 最大负载电流(IMAX)：6 A
- 快速输出放电（可调）
- 启用引脚支持低至1.2 V
- 可调软启动
- 过温保护（热关断）
Key Benefits
- Wide input voltage range for improved design flexibility
- External bias pin for stable on-resistance
- Low Rdson for improved power efficiency and increase current rating
- Adjustable soft start to help reduce inrush current
- Over temperature protection prevents over heating
板上的产品 (1)
| Type number | Description | Status | Quick access | |
|---|---|---|---|---|
|
NPS3005AGP | 0.5 V to 5.5 V, 6 A. 14 mΩ load switch with soft start, and optional quick-output discharge | Production |
相关板块 (2)
| Board | Description | Type | Quick links | Shop link | |
|---|---|---|---|---|---|
|

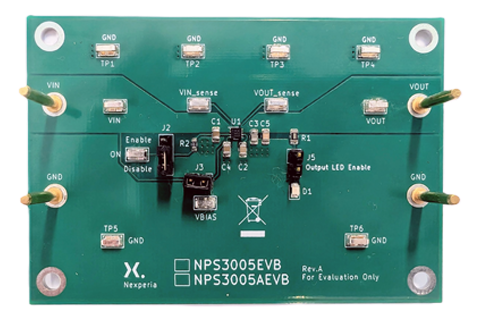

NEVB-NPS3005---0-5-5-V--6-A--15-m--single-channel-load-switch-with-soft-start-evaluation-board | NEVB-NPS3005 - 0.5-5.5 V, 6 A, 15 mΩ single channel load switch with soft start and quick output discharge (QoD) evaluation board | Evaluation board | 订单 | |
|

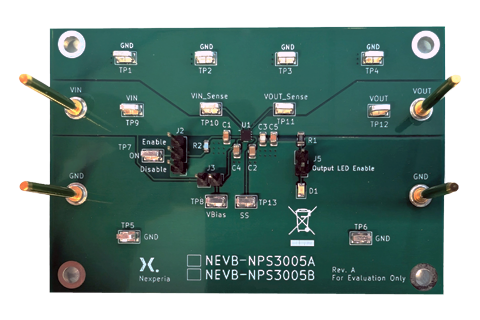

nevb-nps3005b-single-channel-load-switch-with-soft-start | NEVB-NPS3005B - 0.5-5.5 V, 6 A, 14 mΩ single channel load switch with soft start and quick output discharge (QoD) evaluation board | Evaluation board | 订单 |
板上的产品 (1)
| Type number | Description | Status | Quick access | |
|---|---|---|---|---|
|
|
NPS3005AGP | 0.5 V to 5.5 V, 6 A. 14 mΩ load switch with soft start, and optional quick-output discharge | Production |
相关板块 (2)
| Board | Description | Type | Quick links | Shop link | |
|---|---|---|---|---|---|
|
|
NEVB-NPS3005---0-5-5-V--6-A--15-m--single-channel-load-switch-with-soft-start-evaluation-board | NEVB-NPS3005 - 0.5-5.5 V, 6 A, 15 mΩ single channel load switch with soft start and quick output discharge (QoD) evaluation board | Evaluation board | 订单 | |
|
|
nevb-nps3005b-single-channel-load-switch-with-soft-start | NEVB-NPS3005B - 0.5-5.5 V, 6 A, 14 mΩ single channel load switch with soft start and quick output discharge (QoD) evaluation board | Evaluation board | 订单 |
文档 (1)
| 文件名称 | 标题 | 类型 | 日期 |
|---|---|---|---|
| UM90092 | NPS3005A/NPS3005B 0.5 V to 5.5 V, 6 A, 14 mΩ single channel load switch with soft start | User manual | 2026-06-04 |
