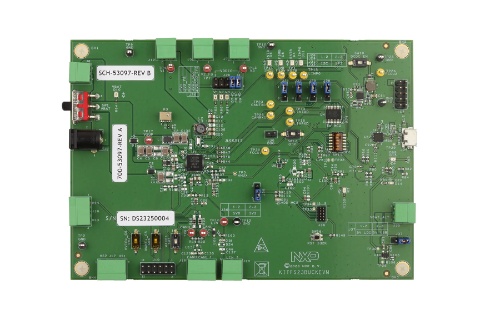

恩智浦FS23功能安全
在汽车电动泵、暖通空调(HVAC)以及传动和变速器系统中，恩智浦参考设计利用其FS23系列汽车安全SBC以符合ASIL B的标准为通用车身控制应用提供支持。设计中包含来自Nexperia的一系列ESD保护、逻辑和二极管器件。
主要特性与优势
- 树形电源轨，具备高度灵活性，提供基于S32K处理器的应用
- 可配置的电压和上电/断电序列
- 支持失效保护功能，包括高级看门狗
关键应用
板上的产品 (9)
| Type number | Description | Status | Quick access | |
|---|---|---|---|---|
|
PESD1IVN27-A | ESD protection for In-vehicle networks | Production | |
|
74HC245PW | Octal bus transceiver; 3-state | Production | |
|
PESD5V0R1BSF | Ultra low capacitance bidirectional ESD protection diode | Production | |
|
BCP53-16 | 80 V, 1 A PNP medium power transistors | Production | |
|
BZX84-A5V1 | Voltage regulator diodes | Production | |
|
PMEG2005AEL | 0.5 A ultra low V_F MEGA Schottky barrier rectifier in leadless ultra small SOD882 package | Production | |
|
PESD1IVN24-LS | ESD protection for In-vehicle networks | Production | |
|
|
PMEG4005AEA-Q | Very low VF MEGA Schottky barrier rectifier | Production | |
|
PMEG4020ETR | High temperature 40 V, 2 A low VF Schottky barrier rectifier | Production |
相关板块 (2)
| Board | Description | Type | Quick links | Shop link | |
|---|---|---|---|---|---|
|
NXP-FS86-Functional-safety | NXP FS86 Functional safety | Reference design |
|
|
|
NXP-FS85-Functional-safety | NXP FS85 Functional safety | Reference design |
|
