NEVB-NBM7100 A/B-02 Battery life booster evaluation board - Lite

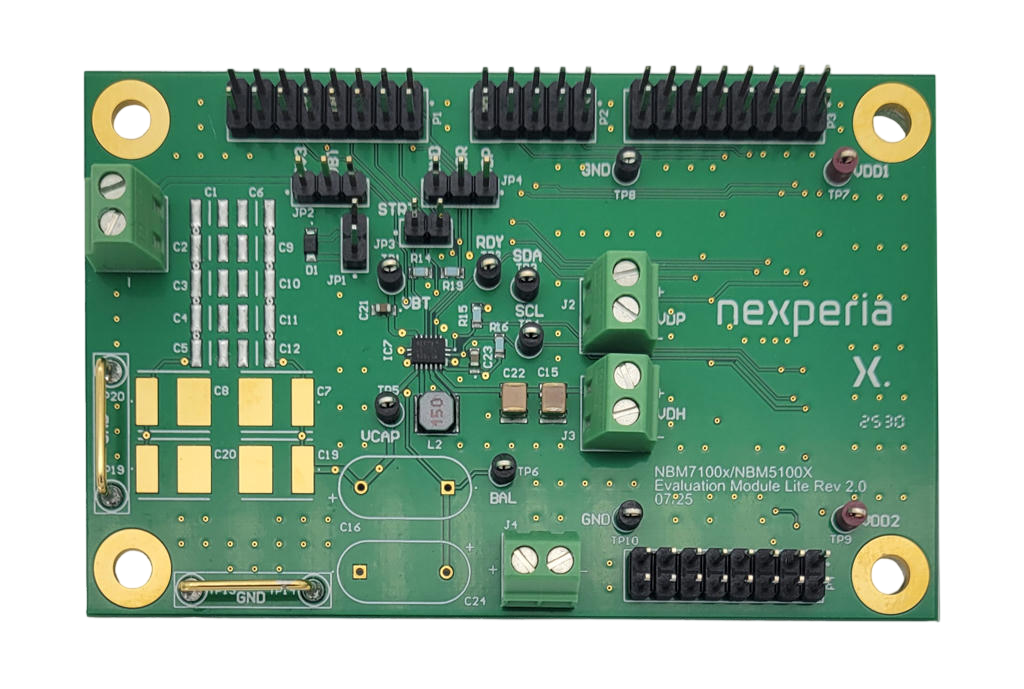

The NBM7100 evaluation boards are 4-layers PCBs with the minimum necessary components required for the proper functioning of the battery life boosters, allowing evaluation with real pulse current loads. The user can use an external electronic load programmed to deliver different current load profiles, or attach  their application transceiver (sensor, MCU, etc.) to VDH output of the battery life booster.

Key features & benefits

  • Flexible input voltage: through external voltage source or a coin-cell battery
  • User storage capacitor selection:polymer and supercapacitors
  • Connector for External customer storage capacitor
  • Connectors for External loading
  • Serial I2C/SPI communication port for general purpose USB dongles
  • Serial I2C/SPI communication ports for MCU control with level shifters

Software and tools

BB_Lite_gui

板上的产品 (4)

Type number Description Status Quick access
NBM7100ABQ Coin cell battery life booster with adaptive power optimization Production
NBM7100BBQ Coin cell battery life booster with adaptive power optimization Production
NBM7100ABQ-Q100 Coin cell battery life booster with adaptive power optimization Production
NBM7100BBQ-Q100 Coin cell battery life booster with adaptive power optimization Production

相关板块 (1)

Board Description Type Quick links Shop link
NEVB-NBM5100A/B-02 Battery life booster evaluation board - Lite nevb-nbm5100-02 NEVB-NBM5100A/B-02 Battery life booster evaluation board - Lite Evaluation board

板上的产品 (4)

Type number Description Status Quick access
NBM7100ABQ Coin cell battery life booster with adaptive power optimization Production
NBM7100BBQ Coin cell battery life booster with adaptive power optimization Production
NBM7100ABQ-Q100 Coin cell battery life booster with adaptive power optimization Production
NBM7100BBQ-Q100 Coin cell battery life booster with adaptive power optimization Production

相关板块 (1)

Board Description Type Quick links Shop link
NEVB-NBM5100A/B-02 Battery life booster evaluation board - Lite nevb-nbm5100-02 NEVB-NBM5100A/B-02 Battery life booster evaluation board - Lite Evaluation board

文档 (2)

文件名称 标题 类型 日期
BB_Lite_gui BB_Lite_gui Design support 2025-12-17
UM90072 NBM5100; NBM7100 evaluation board Lite 2.0 User manual 2025-12-09
