通过使用I²C GPIO扩展器充分提高系统设计重复利用能力

当需要扩展I/O数量时，利用我们的NCA95xx系列通用I/O (GPIO)扩展器可实现简洁的设计，同时尽可能减少互连。这些GPIO扩展器采用TSSOP24和HWQFN24封装，具有多种功能，包括中断、硬件复位、内部上拉电阻和可配置上拉电阻。这些GPIO扩展器的优势包括具备非常低的静态功耗，并可通过减少走线和简化布线降低PCB设计复杂性，从而降低BOM成本。

主要特性和优势

  • 单电源GPIO扩展器，支持1.65 V至5.5 V工作电源电压范围
  • 通过I²C协议可实现串行到并行（SDA至P0-P16）和并行到串行(P0-P16)转换
  • 在SCL和SDA输入处，施密特触发器动作可实现较慢的输入转换并提供更好的开关噪声抗扰度。
  • 低功耗：2.5 µA（最大值）
  • 工作频率：400 kHz（FM I²C模式）
  • 5 V容差I/O和16个I/O引脚，默认为16路输入
  • 无毛刺上电，所有通道均配置为弱上拉电阻输入
  • 锁存输出，具有25 mA最大驱动能力，可直接驱动LED
  • 极性反转寄存器
  • 外部复位引脚用于复位状态机和内部寄存器
  • SCL和SDA输入提供噪声滤波器
  • 封装选项：TSSOP24和HWQFN24
  • 额定温度范围为-40 °C至+85 °C和-40 °C至+125 °C

关键应用

  • 服务器和路由器
  • 电视和硬件控制监控器
  • 游戏机和无人机
  • 电池供电应用
  • 汽车应用（ADAS、VCU、DCU和BCM）
  • 监控摄像头
  • 电信设备

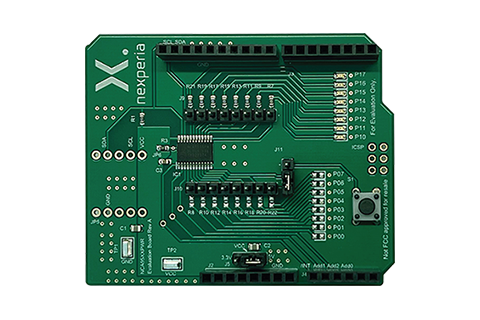

Evaluation boards

参数搜索

I²C General-Purpose I/O (GPIO)
数据加载中，请稍候...
参数搜索不可用。

产品

型号 描述 状态 快速访问
NCA6416BY Low-voltage translating 16-bit I²C-bus/SMBus I/O expander Production
NCA6416BY-Q100 Low-voltage translating 16-bit I²C-bus/SMBus I/O expander Production
NCA6416PW Low-voltage translating 16-bit I²C-bus/SMBus I/O expander Production
NCA6416PW-Q100 Low-voltage translating 16-bit I²C-bus/SMBus I/O expander Production
NCA9534PW Low-voltage 8-bit I²C-bus and SMBus low power I/O port with interrupt, weak pull-up Qualification
NCA9534PW-Q100 Low-voltage 8-bit I²C-bus and SMBus low power I/O port with interrupt, weak pull-up Qualification
NCA9536AGX 4-bit I²C and SMBus low-power I/O expander with configurable registers and interrupt Qualification
NCA9536BGX 4-bit I²C and SMBus low-power I/O expander with configurable registers and interrupt Qualification
NCA9536CGX 4-bit I²C and SMBus low-power I/O expander with configurable registers and interrupt Qualification
NCA9536DQ 4-bit I²C and SMBus low-power I/O expander with configurable registers and interrupt Qualification
NCA9536DQ-Q100 4-bit I²C and SMBus low-power I/O expander with configurable registers and interrupt Qualification
NCA9536GX 4-bit I²C and SMBus low-power I/O expander with configurable registers and interrupt Qualification
NCA9537DP 4-bit I²C and SMBus low-power I/O expander with interrupt, reset, and configurable registers Qualification
NCA9538PW Low-voltage 8-bit I²C-bus and SMBus low power I/O port with interrupt, weak pull-up Qualification
NCA9538PW-Q100 Low-voltage 8-bit I²C-bus and SMBus low power I/O port with interrupt, reset and configurable registers Qualification
NCA9539BY Low-voltage 16-bit I²C and SMBus low-power I/O expander with interrupt output, reset pin and configuration registers Production
NCA9539PW Low-voltage 16-bit I²C and SMBus low-power I/O expander with interrupt output, reset pin and configuration registers Production
NCA9554PW Low-voltage 8-bit I²C-bus and SMBus low power I/O port with interrupt, weak pull-up and configurable registers Qualification
NCA9554PW-Q100 Low-voltage 8-bit I²C-bus and SMBus low power I/O port with interrupt, weak pull-up and configurable registers Qualification
NCA9555BY Low-voltage 16-bit I²C and SMBus I/O expander with interrupt output and configuration registers Production
NCA9555PW Low-voltage 16-bit I²C and SMBus I/O expander with interrupt output and configuration registers Production
NCA9594PW Low-voltage 8-bit I²C-bus and SMBus low power I/O port with interrupt, weak pull-up Qualification
NCA9594PW-Q100 Low-voltage 8-bit I²C-bus and SMBus low power I/O port with interrupt, configurable weak pull-up and registers Qualification
NCA9595PW Low-voltage 16-bit I²C and SMBus I/O expander with interrupt output, configuration registers and programmable pull-up resistors Production
NCA9595PW-Q100 Low-voltage 16-bit I²C and SMBus I/O expander with interrupt output, configuration registers and programmable pull-up resistors Production
PCA9535PW Low-voltage 16-bit I²C and SMBus low-power I/O expander with interrupt output and configuration registers Production
PCA9539PW Low-voltage 16-bit I²C and SMBus low-power I/O expander with interrupt output, reset pin and configuration registers Production
PCA9555PW Low-voltage 16-bit I²C-bus I/O port with interrupt and weak pull-up Production
Visit our documentation center for all documentation

Leaflet (1)
文件名称 标题 类型 日期
Leaflet_SOT8065_Minilogic.pdf Leaflet_SOT8065 Minilogic Leaflet 2024-11-15

Outline 3d (1)
文件名称 标题 类型 日期

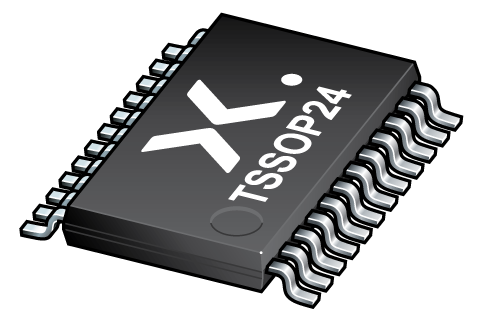

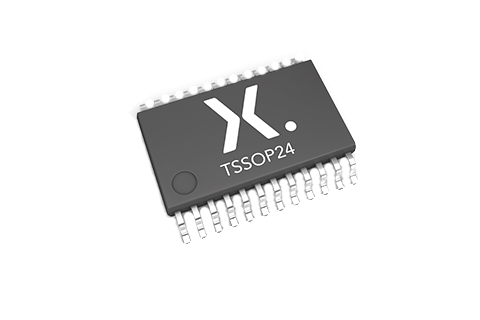

sot355-1_3d.png plastic, thin shrink small outline package; 24 leads; 0.65 mm pitch; 7.8 mm x 4.4 mm x 1.1 mm body Outline 3d 2021-06-10

Software (2)
文件名称 标题 类型 日期
NCA95XX_EVB_Software.zip NCA95XX EVB GUI Software 2023-03-12
NCA95XX_Arduino_Sketches.zip NCA95XX Arduino™ Sketch Examples Software 2023-03-12

User manual (2)
文件名称 标题 类型 日期
UM90016.pdf NCA95xx GPIO expander EVB (Arduino™ shield compatible) User manual 2024-02-23
UM90017.pdf NCA95XX Evaluation Board: Quick-Start Guide User manual 2023-01-18
