主要特性和优势
- 低VCEsat晶体管和RET集成在小型SMD塑料封装中
- 节省空间的解决方案,可简化电路设计,将器件数从四个减少到一个
- VCEO范围:15 V至60 V,提供四个电阻值
- 减少焊点,提升可靠性
- 电流能力高达:
- IC:1.8 A(20 V时)
- IC:1.5 A(60 V时)
- 降低贴片成本
- 低集电极-发射极饱和电压
- 阈值电压(<1 V)低于MOSFET
- 多个封装选择
- 符合AEC-Q101标准
关键应用
- 供电线路开关
- 电池充电器开关
- 适合LED、驱动器和背光应用的高端开关
- 便携式设备
- 中等功率DC-DC转换
参数搜索
Low VCEsat (BISS) transistors load switches
数据加载中,请稍候...
参数搜索不可用。
产品
型号 | 描述 | 状态 | 快速访问 |
---|---|---|---|
PBLS1501Y; PBLS1501V | 15 V PNP BISS loadswitch | ACT |
|
PBLS1501V | 15 V PNP BISS loadswitch | EndOfLife | |
PBLS1502Y; PBLS1502V | 15 V PNP BISS loadswitch | ACT |
|
PBLS1502V | 15 V PNP BISS loadswitch | EndOfLife | |
PBLS1502Y | 15 V PNP BISS loadswitch | EndOfLife | |
PBLS1503Y; PBLS1503V | 15 V PNP BISS loadswitch | ACT |
|
PBLS1503V | 15 V PNP BISS loadswitch | EndOfLife | |
PBLS1503Y | 15 V PNP BISS loadswitch | Production | |
PBLS1504Y; PBLS1504V | 15 V PNP BISS loadswitch | ACT |
|
PBLS1504V | 15 V PNP BISS loadswitch | EndOfLife | |
PBLS1504Y | 15 V 500 mA PNP/NPN loadswitch double transistor | Production | |
PBLS4001Y; PBLS4001V | 40 V PNP BISS loadswitch | ACT |
|
PBLS4001V | 40 V PNP BISS loadswitch | EndOfLife | |
PBLS4001Y | 40 V PNP BISS loadswitch | Production | |
PBLS4003Y; PBLS4003V | 40 V PNP BISS loadswitch | ACT |
|
PBLS4003V | 40 V PNP BISS loadswitch | EndOfLife | |
PBLS4003Y | 40 V 500 mA PNP/NPN loadswitch double transistor | Production | |
PBLS4004Y; PBLS4004V | 40 V PNP BISS loadswitch | ACT |
|
PBLS4004V | 40 V PNP BISS loadswitch | EndOfLife | |
PBLS4004Y | 40 V PNP BISS loadswitch | Production | |
PBLS4005Y; PBLS4005V | 40 V PNP BISS loadswitch | ACT |
|
PBLS4005V | 40 V PNP BISS loadswitch | EndOfLife | |
PBLS4005Y | 40 V 500 mA PNP/NPN loadswitch double transistor | Production | |
PBLS4003D | 40 V PNP BISS loadswitch | Production | |
PBLS4003Y | 40 V 500 mA PNP/NPN loadswitch double transistor | Production | |
PBLS4005V | 40 V PNP BISS loadswitch | EndOfLife | |
PBLS4004V | 40 V PNP BISS loadswitch | EndOfLife | |
PBLS1503Y | 15 V PNP BISS loadswitch | Production | |
PBLS1501Y | 15 V PNP BISS loadswitch | Production | |
PBLS2024D | 20 V, 1.8 A PNP BISS loadswitch | EndOfLife | |
PBLS2023D | 20 V, 1.8 A PNP BISS loadswitch | Production | |
PBLS6022D | 60 V, 1.5 A PNP BISS loadswitch | Production | |
PBLS4002Y | 40 V, 500 mA PNP loadswitch transistor | Production | |
PBLS2001S | 20 V PNP BISS loadswitch | EndOfLife | |
PBLS2002D | 20 V PNP BISS loadswitch | Production | |
PBLS4003V | 40 V PNP BISS loadswitch | EndOfLife | |
PBLS2003D | 20 V PNP BISS loadswitch | Production | |
PBLS4005D | 40 V PNP BISS loadswitch | Production | |
PBLS2002S | 20 V PNP BISS loadswitch | EndOfLife | |
PBLS1504Y | 15 V 500 mA PNP/NPN loadswitch double transistor | Production | |
PBLS4004Y | 40 V PNP BISS loadswitch | Production | |
PBLS6003D | 60 V, 1 A PNP loadswitch double transistor | Production | |
PBLS2004D | 20 V PNP BISS loadswitch | EndOfLife | |
PBLS1503V | 15 V PNP BISS loadswitch | EndOfLife | |
PBLS2001D | 20 V PNP BISS loadswitch | Production | |
PBLS6001D | 60 V PNP BISS loadswitch | Production | |
PBLS6002D | 60 V, 1 A PNP/NPN loadswitch double transistor | Production | |
PBLS2021D | 20 V, 1.8 A PNP BISS loadswitch | Production | |
PBLS6005D | 60 V PNP BISS loadswitch | Production | |
PBLS4001D | 40 V PNP BISS loadswitch | EndOfLife | |
PBLS6004D | 60 V PNP BISS loadswitch | EndOfLife | |
PBLS4004D | 40 V PNP BISS loadswitch | EndOfLife | |
PBLS6021D | 60 V, 1.5 A PNP BISS loadswitch | Production | |
PBLS6023D | 60 V, 1.5 A PNP BISS loadswitch | Production | |
PBLS2022D | 20 V, 1.8 A PNP BISS loadswitch | Production | |
PBLS1502Y | 15 V PNP BISS loadswitch | EndOfLife | |
PBLS1504V | 15 V PNP BISS loadswitch | EndOfLife | |
PBLS4002V | EndOfLife | ||
PBLS6024D | 60 V, 1.5 A PNP loadswitch | Production | |
PBLS4001V | 40 V PNP BISS loadswitch | EndOfLife | |
PBLS1502V | 15 V PNP BISS loadswitch | EndOfLife | |
PBLS2003S | 20 V PNP BISS loadswitch | EndOfLife | |
PBLS4001Y | 40 V PNP BISS loadswitch | Production | |
PBLS4002D | 40 V PNP BISS loadswitch | EndOfLife | |
PBLS1501V | 15 V PNP BISS loadswitch | EndOfLife | |
PBLS4005Y | 40 V 500 mA PNP/NPN loadswitch double transistor | Production | |
PBLS6024D-Q | 60 V, 1.5 A PNP loadswitch | Production | |
PBLS4002Y-Q | 40 V PNP loadswitch transistor | Production | |
PBLS4005Y-Q | 40 V 500 mA PNP/NPN loadswitch double transistor | Production | |
PBLS1504Y-Q | 15 V 500 mA PNP/NPN loadswitch double transistor | Production | |
PBLS4003Y-Q | 40 V 500 mA PNP/NPN loadswitch double transistor | Production |
Visit our documentation center for all documentation
Marcom graphics (1) |
|||
---|---|---|---|
文件名称 | 标题 | 类型 | 日期 |

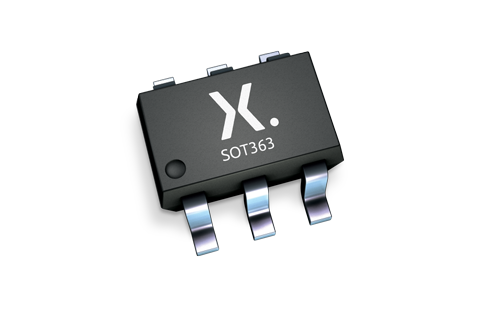

SOT363_mk.png | plastic, surface-mounted package; 6 leads; 1.3 mm pitch; 2 mm x 1.25 mm x 0.95 mm body | Marcom graphics | 2017-01-28 |
