接口

全面的I²C GPIO扩展器和转换器产品组合

我们的接口系列由GPIO扩展器和转换器组成，通过提供更低功耗的技术确保实现高性能信号传输，从而增强系统功能，并提高可靠性。

主要特性和优势

  • 宽电源电压范围
  • 低传播延迟
  • 低功耗：2.5 µA（最大值）
  • 过压容限选项
  • 额定温度范围为-40 °C至+85 °C和-40 °C至+125 °C


关键应用

  • 服务器、路由器和个人计算
  • 电视和硬件控制监控器
  • 游戏机和无人机
  • 电池供电应用
  • 汽车应用（ADAS、VCU、DCU和BCM）
  • 监控摄像头
  • 电信设备


Featured Documents

Latest news and blogs

  • 博客文章
10月 2, 2025

Modernizing Power Path Design: Replacing Schottky ...
4月 26, 2023

Upgrade your System and Keep Control of Power ...

产品

型号 描述 状态 快速访问
NCA9535 Low-voltage 16-bit I²C and SMBus low-power I/O expander with interrupt output and configuration registers ACT
NCA9535BY Low-voltage 16-bit I²C and SMBus low-power I/O expander with interrupt output and configuration registers Production
NCA9535BY-Q100 Low-voltage 16-bit I²C and SMBus low-power I/O expander with interrupt output and configuration registers Production
NCA9535PW Low-voltage 16-bit I²C and SMBus low-power I/O expander with interrupt output and configuration registers Production
NCA9535PW-Q100 Low-voltage 16-bit I²C and SMBus low-power I/O expander with interrupt output and configuration registers Production
NCA9535-Q100 Low-voltage 16-bit I²C and SMBus low-power I/O expander with interrupt output and configuration registers ACT
NCA9535BY-Q100 Low-voltage 16-bit I²C and SMBus low-power I/O expander with interrupt output and configuration registers Production
NCA9535PW-Q100 Low-voltage 16-bit I²C and SMBus low-power I/O expander with interrupt output and configuration registers Production
NCA9539PW-Q100 Low-voltage 16-bit I²C and SMBus low-power I/O expander with interrupt output, reset pin and configuration registers ACT
NCA9539BY-Q100 Low-voltage 16-bit I²C and SMBus low-power I/O expander with interrupt output, reset pin and configuration registers Production
NCA9539PW-Q100 Low-voltage 16-bit I²C and SMBus low-power I/O expander with interrupt output, reset pin and configuration registers Production
NCA9555-Q100 Low-voltage 16-bit I²C and SMBus I/O expander with interrupt output and configuration registers ACT
NCA9555BY-Q100 Low-voltage 16-bit I²C and SMBus I/O expander with interrupt output and configuration registers Production
NCA9555PW-Q100 Low-voltage 16-bit I²C and SMBus I/O expander with interrupt output and configuration registers Production
NCA6416BY Low-voltage translating 16-bit I²C-bus/SMBus I/O expander Production
NCA6416BY-Q100 Low-voltage translating 16-bit I²C-bus/SMBus I/O expander Production
NCA6416PW Low-voltage translating 16-bit I²C-bus/SMBus I/O expander Production
NCA6416PW-Q100 Low-voltage translating 16-bit I²C-bus/SMBus I/O expander Production
NCA9539BY Low-voltage 16-bit I²C and SMBus low-power I/O expander with interrupt output, reset pin and configuration registers Production
NCA9539PW Low-voltage 16-bit I²C and SMBus low-power I/O expander with interrupt output, reset pin and configuration registers Production
NCA9547ABY 8-channel I²C-bus multiplexer with reset Production
NCA9547ABY-Q100 8-channel I²C-bus multiplexer with reset Production
NCA9547APW 8-channel I²C-bus multiplexer with reset Production
NCA9547APW-Q100 8-channel I²C-bus multiplexer with reset Production
NCA9548ABY 8-channel I²C-bus switch with reset Production
NCA9548ABY-Q100 8-channel I²C-bus switch with reset Production
NCA9548APW 8-channel I²C-bus switch with reset Production
NCA9548APW-Q100 8-channel I²C-bus switch with reset Production
NCA9555BY Low-voltage 16-bit I²C and SMBus I/O expander with interrupt output and configuration registers Production
NCA9555PW Low-voltage 16-bit I²C and SMBus I/O expander with interrupt output and configuration registers Production
NCA9595PW Low-voltage 16-bit I²C and SMBus I/O expander with interrupt output, configuration registers and programmable pull-up resistors Production
NCA9595PW-Q100 Low-voltage 16-bit I²C and SMBus I/O expander with interrupt output, configuration registers and programmable pull-up resistors Production
NCA9700DQ Level translating Fm+ I²C bus repeater/accelerator Production
NCA9701AGX Level translating Fm+ I²C bus repeater/accelerator Production
PCA9535PW Low-voltage 16-bit I²C and SMBus low-power I/O expander with interrupt output and configuration registers Production
PCA9539PW Low-voltage 16-bit I²C and SMBus low-power I/O expander with interrupt output, reset pin and configuration registers Production
PCA9555PW Low-voltage 16-bit I²C-bus I/O port with interrupt and weak pull-up Production
Visit our documentation center for all documentation

Marcom graphics (1)
文件名称 标题 类型 日期

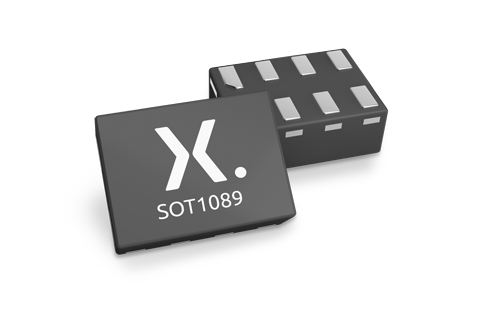

XSON8_SOT1089_mk.png plastic, extremely thin small outline package; no leads; 8 terminals; 0.55 mm pitch; 1.35 mm x 1 mm x 0.5 mm body Marcom graphics 2017-01-28

Software (1)
文件名称 标题 类型 日期
NCA95XX_Arduino_Sketches.zip NCA95XX Arduino™ Sketch Examples Software 2023-03-12
