NXU0204 evaluation board

This NEVB-NXU0204 evaluation board is designed to evaluate the product performance and behavior of Nexperia NXU0104. The board simulates the device being used in a system by incorporating series resistors and parallel loads on each input/output line. Output enable (OE) is selected with a jumper to pull up to either VCCA or VCCB supply rail and each input has a Schmitt trigger to accommodate slow or noisy input signals with a weak 6.5 MΩ pull-down accommodates floating input signals.

Support NXU0204

Key features & Benefits

•     Wide supply voltage range:
                       VCCA: 0.9 V to 5.5 V
                       VCCB: 0.9 V to 5.5 V
•    Low power consumption for supply voltage range 1.1 V to 5.5 V
           3 µA (Tamb = 25 °C)
           5 µA (Tamb = -40 °C to +125 °C)
•    Schmitt-trigger inputs with integrated static high ohmic pull-down resistor on the input
•    Maximum data rate:
           250 Mbps (≥ 1.8 V to 5 V translation)
•    Output enable (OE) allows connection to VCCA  or VCCB domain
•    Suspend mode when either one of the supply voltages is below 100 mV or disconnected (floating)
•    Low noise overshoot and undershoot <10% of VCCO
•    IOFF circuitry provides partial power-down mode operation

板上的产品 (7)

Type number Description Status Quick access
NXU0204BQ-Q100 4-bit dual-supply voltage level translating buffer; 3-state Production
NXU0204BQ 4-bit dual-supply voltage level translating buffer; 3-state Production
NXU0204BZ 4-bit dual-supply voltage level translating buffer; 3-state Production
NXU0204GU12-Q100 4-bit dual-supply voltage level translating buffer; 3-state Production
NXU0204GU12 4-bit dual-supply voltage level translating buffer; 3-state Production
NXU0204PW-Q100 4-bit dual-supply voltage level translating buffer; 3-state Production
NXU0204PW 4-bit dual-supply voltage level translating buffer; 3-state Production

相关板块 (2)

Board Description Type Quick links Shop link

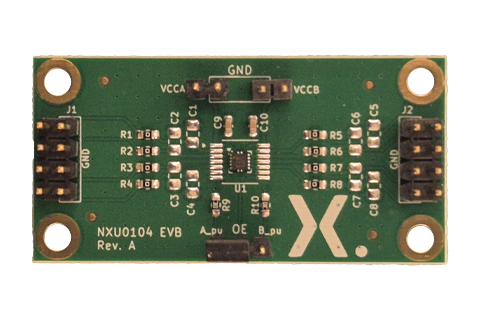

NXU0104 evaluation board nevb-nxu0104 NXU0104 evaluation board Evaluation board

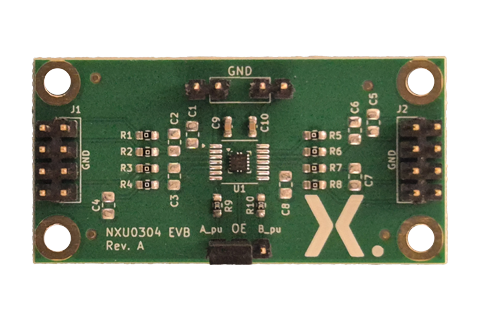

NXU0304 evaluation board nevb-nxu0304 NXU0304 evaluation board Evaluation board
