Double pulse evaluation board featuring 33 mΩ GaN FETs in a bottom-side cooled CCPAK1212 package

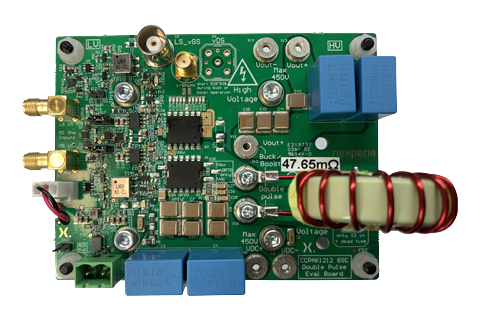

The NX-DP-GAN039-BSC double pulse evaluation board enables double-pulse testing of GaN FETs in a bottom-side cooled copper-clip package (CCPAK). It is optimized for low inductance and features a high-bandwidth current shunt that can be used to evaluate the switching performance with maximum precision. In addition, it can be used for thermal investigations and continuous operation of 3kW and beyond.

Key features & benefits

The Gallium Nitride FET GAN039-650NBB (33 mΩ RDS(on) typ.) used in this evaluation board is a normally-off device, comprised of a high-voltage depletion-mode GaN HEMT (High Electron Mobility Transistor) combined with a tailored 30 V Si-FET in a cascode configuration. It is assembled as a die-on-die stack for best performance and minimized internal parasitics, housed in a 12 mm x 12 mm bottom-side cooled copper-clip package CCPAK.

Key features of GAN039-650NBB include:

  • Very low switching losses
  • Rugged gate with high threshold voltage, Vth = 4 V, enables single supply gate drive voltage 0 V to 10 - 12 V
  • Very good QGD/QGS << 1 ratio, protects against parasitic turn-on
  • Minimal reverse-recovery
  • Very low Rth in bottom-side cooling for SMD
  • Best in class third-quadrant off-state conduction performance for wide-bandgap devices
  • Very low package inductance (≈1.3 nH @ 100 MHz)

Key applications

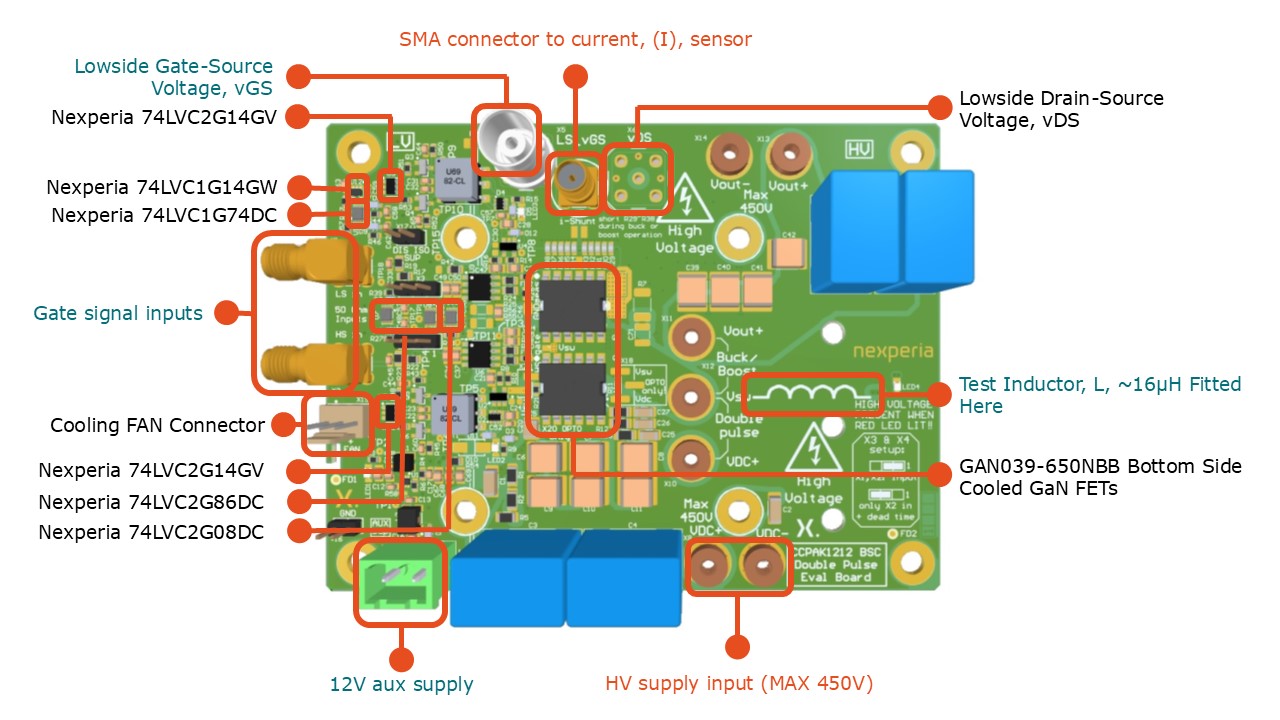

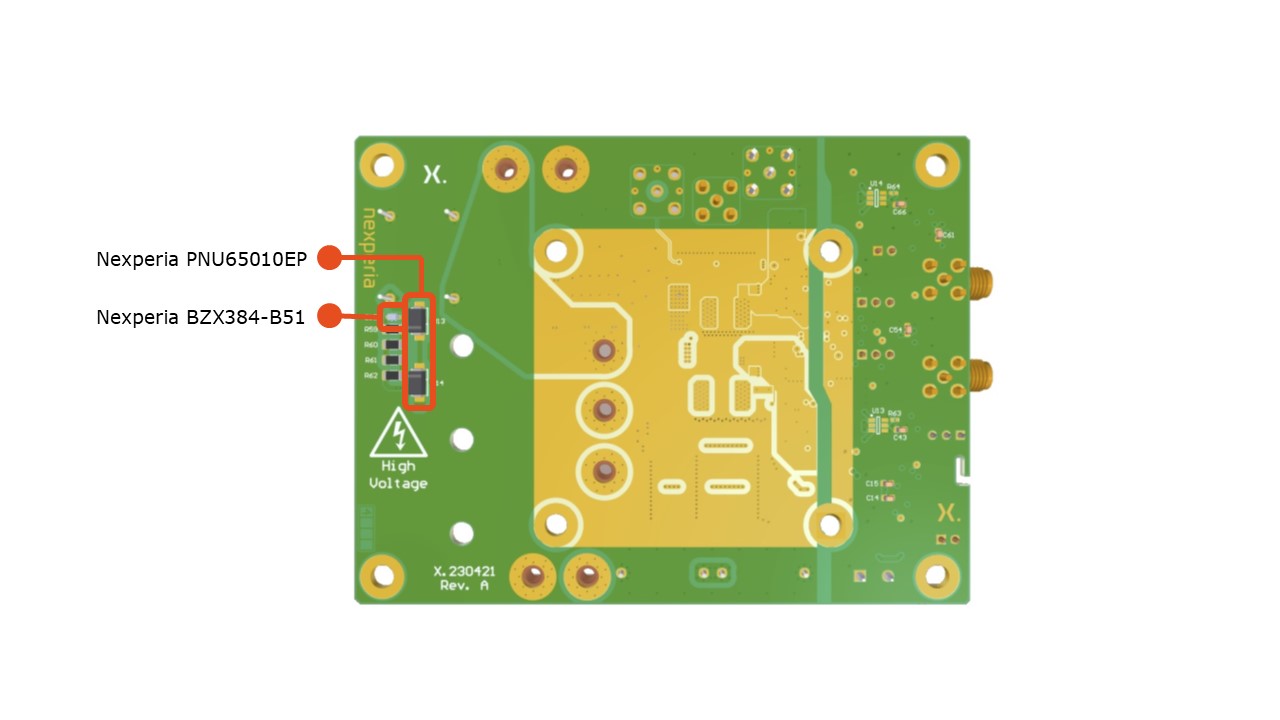

板上的产品 (14)

Type number Description Status Quick access
GAN039-650NBB 650 V, 33 mOhm Gallium Nitride (GaN) FET in a CCPAK1212 package Production
74LVC2G86DC Dual 2-input EXCLUSIVE-OR gate Production
74LVC2G14GV Dual inverting Schmitt trigger with 5 V tolerant input Production
74LVC2G08DC Dual 2-input AND gate Production
74LVC1G74DC Single D-type flip-flop with set and reset; positive edge trigger Production
74LVC1G14GW Single Schmitt-trigger inverter Production
PNU65010EP 650 V, 1 A ultrafast recovery rectifier Production
BZX384-B51 Voltage regulator diodes Production
BAT54XY Schottky barrier diode Production
PMEG2020EJ 20 V, 2 A very low VF Schottky barrier rectifier Production
PMEG2005AEA 20 V, 0.5 A very low VF Schottky barrier rectifier Production
BZX384-B6V2 Voltage regulator diodes Production
1PS76SB40 General-purpose Schottky diode Production
BSH103BK 30 V, N-channel Trench MOSFET Production

相关板块 (5)

Board Description Type Quick links Shop link
Double pulse evaluation board featuring 33 mΩ GaN FETs in a top-side cooled CCPAK1212i package NX-DP-GAN039-TSC-Double-pulse-evaluation-board Double pulse evaluation board featuring 33 mΩ GaN FETs in a top-side cooled CCPAK1212i package Evaluation board 订单
3.5 kW half-bridge evaluation board featuring 33 mΩ GaN FETs in a bottom-side cooled CCPAK1212 package NX-HB-GAN039-BSCUL-bottom-side-cooled-half-bridge-evaluation-board 3.5 kW half-bridge evaluation board featuring 33 mΩ GaN FETs in a bottom-side cooled CCPAK1212 package Evaluation board 订单
3.5 kW half-bridge evaluation board featuring 33 mΩ GaN FETs in a top-side cooled CCPAK1212i package NX-HB-GAN039-TSCUL-top-side-cooled-half-bridge-evaluation-board 3.5 kW half-bridge evaluation board featuring 33 mΩ GaN FETs in a top-side cooled CCPAK1212i package Evaluation board 订单
Half-Bridge evaluation board featuring 35 mΩ GaN FETs in a TO-247 package (3.5 kW) NX-HB-GAN041UL-GAN041-650WSB-half-bridge-evaluation-board Half-Bridge evaluation board featuring 35 mΩ GaN FETs in a TO-247 package (3.5 kW) Evaluation board 订单
4 kW analogue bridgeless totem-pole PFC evaluation board 4-kW-analogue-bridgeless-totem-pole-PFC-evaluation-board 4 kW analogue bridgeless totem-pole PFC evaluation board Evaluation board

板上的产品 (14)

Type number Description Status Quick access
GAN039-650NBB 650 V, 33 mOhm Gallium Nitride (GaN) FET in a CCPAK1212 package Production
74LVC2G86DC Dual 2-input EXCLUSIVE-OR gate Production
74LVC2G14GV Dual inverting Schmitt trigger with 5 V tolerant input Production
74LVC2G08DC Dual 2-input AND gate Production
74LVC1G74DC Single D-type flip-flop with set and reset; positive edge trigger Production
74LVC1G14GW Single Schmitt-trigger inverter Production
PNU65010EP 650 V, 1 A ultrafast recovery rectifier Production
BZX384-B51 Voltage regulator diodes Production
BAT54XY Schottky barrier diode Production
PMEG2020EJ 20 V, 2 A very low VF Schottky barrier rectifier Production
PMEG2005AEA 20 V, 0.5 A very low VF Schottky barrier rectifier Production
BZX384-B6V2 Voltage regulator diodes Production
1PS76SB40 General-purpose Schottky diode Production
BSH103BK 30 V, N-channel Trench MOSFET Production

相关板块 (5)

Board Description Type Quick links Shop link
Double pulse evaluation board featuring 33 mΩ GaN FETs in a top-side cooled CCPAK1212i package NX-DP-GAN039-TSC-Double-pulse-evaluation-board Double pulse evaluation board featuring 33 mΩ GaN FETs in a top-side cooled CCPAK1212i package Evaluation board 订单
3.5 kW half-bridge evaluation board featuring 33 mΩ GaN FETs in a bottom-side cooled CCPAK1212 package NX-HB-GAN039-BSCUL-bottom-side-cooled-half-bridge-evaluation-board 3.5 kW half-bridge evaluation board featuring 33 mΩ GaN FETs in a bottom-side cooled CCPAK1212 package Evaluation board 订单
3.5 kW half-bridge evaluation board featuring 33 mΩ GaN FETs in a top-side cooled CCPAK1212i package NX-HB-GAN039-TSCUL-top-side-cooled-half-bridge-evaluation-board 3.5 kW half-bridge evaluation board featuring 33 mΩ GaN FETs in a top-side cooled CCPAK1212i package Evaluation board 订单
Half-Bridge evaluation board featuring 35 mΩ GaN FETs in a TO-247 package (3.5 kW) NX-HB-GAN041UL-GAN041-650WSB-half-bridge-evaluation-board Half-Bridge evaluation board featuring 35 mΩ GaN FETs in a TO-247 package (3.5 kW) Evaluation board 订单
4 kW analogue bridgeless totem-pole PFC evaluation board 4-kW-analogue-bridgeless-totem-pole-PFC-evaluation-board 4 kW analogue bridgeless totem-pole PFC evaluation board Evaluation board

文档 (2)

文件名称 标题 类型 日期
GaNFET_evaluation_board_Terms_Of_Use GaN FET EVALUATION BOARD TERMS OF USE Other type 2023-10-10
UM90057 NX-DP-GAN039-BSC Double-Pulse EVB with Bottom-Side Cooled CCPAK GaN FETs User manual 2025-10-17
