NEVB-LOGIC02 footprint adapter board

NEVB-LOGIC02 is a dual in-line logic footprint adapter board, designed to simplify the evaluation of Nexperia logic devices by offering several package footprints.

NEVB-LOGIC02 footprint adapter board

Key features & benefits

• Plug and play: identify the package you will be using, place the device in the footprint and solder the device down to start evaluating
• Compatible with several packages:
XSON8 p0.5
XSON8 p0.3
X2SON8
X2SON6
XSON6
TSSOP6
VSSOP8
TSSOP24

相关板块 (2)

Board Description Type Quick links Shop link

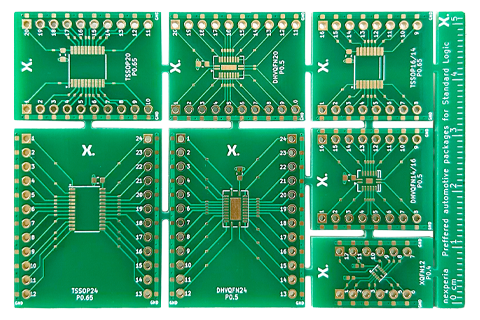

NEVB-LOGIC01 footprint adapter board nevb-logic01-footprint-adapter-board NEVB-LOGIC01 footprint adapter board Evaluation board

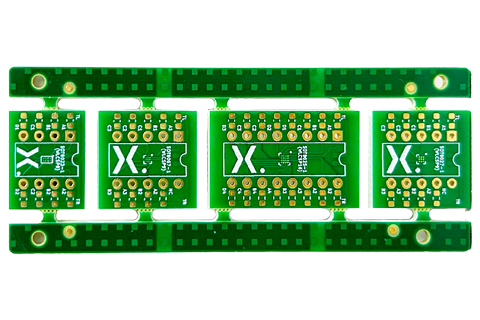

NEVB-LOGIC03 footprint adapter board nevb-logic03-footprint-adapter-board NEVB-LOGIC03 footprint adapter board Evaluation board

相关板块 (2)

Board Description Type Quick links Shop link
NEVB-LOGIC01 footprint adapter board nevb-logic01-footprint-adapter-board NEVB-LOGIC01 footprint adapter board Evaluation board
NEVB-LOGIC03 footprint adapter board nevb-logic03-footprint-adapter-board NEVB-LOGIC03 footprint adapter board Evaluation board

文档 (1)

文件名称 标题 类型 日期
nexperia_factsheet_dual_in_line_logic_footprint_adapter_boards Dual in-line Logic footprint adapter boards Leaflet 2024-01-24
