主要特性和优势
- 降低了热阻和电阻
- 更少发热意味着电路效率更高
- 符合AEC-Q101标准的产品组合
- 中等功率晶体管的高性价比替代选择
- 高性能/电路板空间比
- 提升了小信号尺寸的性能
- 低集电极-发射极饱和
- 适合高环境温度应用的解决方案
- 高电流增益hFE(甚至在高IC时)
- 人体工学设计提升了电路效率
关键应用
- 温度关键型环境中的应用
- 高端和低端开关,例如控制单元中的开关
- 中等功率DC/DC转换
- 低电源电压应用中的驱动器
- 电感负载驱动器,例如继电器、蜂鸣器
参数搜索
Low VCEsat (BISS) transistors single NPN
数据加载中,请稍候...
参数搜索不可用。
产品
型号 | 描述 | 状态 | 快速访问 |
---|---|---|---|
PBSS302ND-Q | 40 V, 4 A NPN low VCEsat transistor | Production | |
PBSS4160T-Q | 60 V, 1 A NPN low VCEsat (BISS) transistor | Production | |
PBSS4140T-Q | 40 V, 1 A NPN low VCEsat (BISS) transistor | Production | |
PBSS4330PAS-Q | 30 V, 3 A NPN low VCEsat transistor | Production | |
PBSS302NZ-Q | 20 V, 5.8 A NPN low VCEsat transistor | Production | |
PBSS4160QA-Q | 60 V, 1 A NPN low VCEsat transistor | Production | |
2PD2150 | 20 V, 3 A NPN low VCEsat (BISS) transistor | Production | |
PBSS4260QA | 60 V, 2 A NPN low VCEsat (BISS) transistor | Production | |
PBSS2540E | 40 V, 500 mA NPN low VCEsat (BISS) transistor | EndOfLife | |
PBSS8110X | 100 V, 1 A NPN low VCEsat (BISS) transistor | Production | |
PBSS4320T | 20 V NPN low VCEsat transistor | Production | |
PBSS4360X | 60 V, 3 A NPN low VCEsat BISS transistor | Production | |
PBSS4032ND | 30 V, 3.5 A NPN low VCEsat (BISS) transistor | EndOfLife | |
PBSS304ND | 80 V, 3 A NPN low VCEsat (BISS) transistor | EndOfLife | |
PBSS305ND | 100 V, 3 A NPN low VCEsat (BISS) transistor | EndOfLife | |
PBSS4230T | 30 V; 2 A NPN low VCEsat (BISS) transistor | Production | |
PBSS4320X | 20 V, 3 A NPN low VCEsat (BISS) transistor | Production | |
PBSS4160U | 60 V, 1 A NPN low VCEsat (BISS) transistor | Production | |
PBSS4140U | 40V Low VCEsat NPN Transistor | Production | |
PBSS4120T | 20 V; 1 A NPN low VCEsat (BISS) transistor | Production | |
PBSS4130T | 30 V; 1 A NPN low VCEsat (BISS) transistor | Production | |
PBSS2515E | 15 V, 0.5 A NPN low VCEsat (BISS) transistor | EndOfLife | |
PBSS8110Y | 100 V, 1 A NPN low VCEsat (BISS) transistor | EndOfLife | |
PBSS4130QA | 30 V, 1 A NPN low VCEsat (BISS) transistor | Production | |
PBSS4250X | 50 V, 2 A NPN low VCEsat transistor | Production | |
PBSS8110Z | 100 V, 1 A NPN low VCesat (BISS) transistor | Production | |
PBSS2515MB | 15 V, 0.5 A NPN low VCEsat (BISS) transistor | EndOfLife | |
PBSS4240Z | 40 V, 2 A NPN low VCEsat (BISS) transistor | Production | |
PBSS4360Z | 60 V, 3 A NPN low VCEsat (BISS) transistor | Production | |
PBSS4230QA | 30 V, 2 A NPN low VCEsat (BISS) transistor | Production | |
PBSS2540MB | 40 V, 0.5 A NPN low VCEsat (BISS) transistor | Production | |
PBSS2540M | 40 V, 0.5 A NPN low VCEsat (BISS) transistor | Production | |
PBSS4240Y | 40 V low VCEsat NPN transistor | EndOfLife | |
PBSS4160X | 60 V, 1 A NPN low VCEsat BISS transistor | Production | |
PBSS4330X | 30 V, 3 A NPN low VCEsat (BISS) transistor | Production | |
PBSS4240X | 40 V, 2 A NPN low VCEsat (BISS) transistor | Production | |
PBSS4540Z | 40 V low VCEsat NPN transistor | Production | |
PBSS4350X | 50 V, 3 A NPN low VCEsat transistor | Production | |
PBSS8110D | 100 V, 1 A NPN low VCEsat (BISS) transistor | Production | |
PMMT491A | NPN BISS transistor | Production | |
PBSS4350T-Q | 50 V; 3 A NPN low VCEsat transistor | Production | |
PBSS4240T-Q | 40 V; 2 A NPN low VCEsat transistor | Production | |
PBSS4350Z-Q | 50 V low VCEsat NPN transistor | Production | |
PBSS4480X-Q | 80 V, 4 A NPN low VCEsat transistor | Production | |
PBSS4360PAS-Q | 60 V, 3 A NPN low VCEsat transistor | Production | |
PBSS4420D-Q | 20 V, 4 A NPN low VCEsat transistor | Production | |
PBSS4041NX-Q | 60 V, 6.2 A NPN low VCEsat transistor | Development | |
PBSS8110T-Q | 100 V, 1 A NPN low VCEsat transistor | Production | |
PBSS4021NX-Q | 20 V, 7 A NPN low VCEsat transistor | Development | |
PBSS4041NT-Q | 60 V, 3.8 A NPN low VCEsat transistor | Production | |
PBSS4041NZ-Q | 60 V, 7 A NPN low VCEsat transistor | Production | |
PBSS303NX-Q | 30 V, 5.1 A NPN low VCEsat transistor | Production | |
PBSS304NX-Q | 60 V, 4.7 A NPN low VCEsat transistor | Production | |
PMBTA44-Q | 400 V, 0.3 A NPN high-voltage low VCEsat transistor | Production | |
PBSS4350D-Q | 50 V low VCEsat NPN transistor | Production | |
PBSS4021NZ-Q | 20 V, 8 A NPN low VCEsat transistor | Production | |
PMBTA45-Q | 500 V, 150 mA NPN high-voltage low VCEsat transistor | Production | |
PBSS4540X-Q | 40 V, 5 A NPN low VCEsat transistor | Production | |
PBSS4520X-Q | 20 V, 5 A NPN low VCEsat transistor | Production | |
PBSS4021NT-Q | 20 V, 4.3 A NPN low VCEsat transistor | Production | |
PBSS4032NX-Q | 30 V, 4.7 A NPN low VCEsat transistor | Production | |
PBSS303NZ-Q | 30 V, 5.5 A NPN low VCEsat transistor | Production | |
PBSS301NX-Q | 12 V, 5.3 A NPN low VCEsat transistor | EndOfLife | |
PBSS305NX-Q | 80 V, 4.6 A NPN low VCEsat transistor | Production | |
PBSS4032NT-Q | 30 V, 2.6 A NPN low VCEsat transistor | Production | |
PBSS4440D-Q | 40 V NPN low VCEsat transistor | Production | |
PBSS4032NZ-Q | 30 V, 4.9 A NPN low VCEsat transistor | Production | |
PBSS304NZ-Q | 60 V, 5.2 A NPN low VCEsat transistor | Production | |
PBSS4350PAS-Q | 50 V, 3 A NPN low VCEsat transistor | Production | |
PBSS303ND-Q | 60 V, 3 A NPN low VCEsat transistor | Production | |
PBSS302NX-Q | 20 V, 5.3 A NPN low VCEsat transistor | Production | |
PBSS306NX-Q | 100 V, 4.5 A NPN low VCEsat transistor | Production | |
PBSS306NZ-Q | 100 V, 5.1 A NPN low VCEsat transistor | Production |
Visit our documentation center for all documentation
Marcom graphics (1) |
|||
---|---|---|---|
文件名称 | 标题 | 类型 | 日期 |

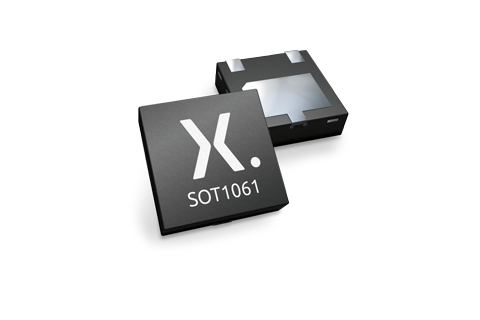

DFN2020-3_SOT1061_mk.png | plastic, thermal enhanced ultra thin small outline package; 3 terminals; 1.3 mm pitch; 2 mm x 2 mm x 0.65 mm body | Marcom graphics | 2017-01-28 |
Selection guide (1) |
|||
文件名称 | 标题 | 类型 | 日期 |
Nexperia_Selection_guide_2023.pdf | Nexperia Selection Guide 2023 | Selection guide | 2023-05-10 |
