Automatic HVAC - BLDC blower motor

In Heating, Ventilation, and Air Conditioning (HVAC) systems, the trend is towards temperature control with PWM driven brushless DC motors. Overall system reliability and efficiency is improved compared with linear operation and brushed motors. This delivers significant performance, fuel and CO2 savings over the lifetime of the vehicle.

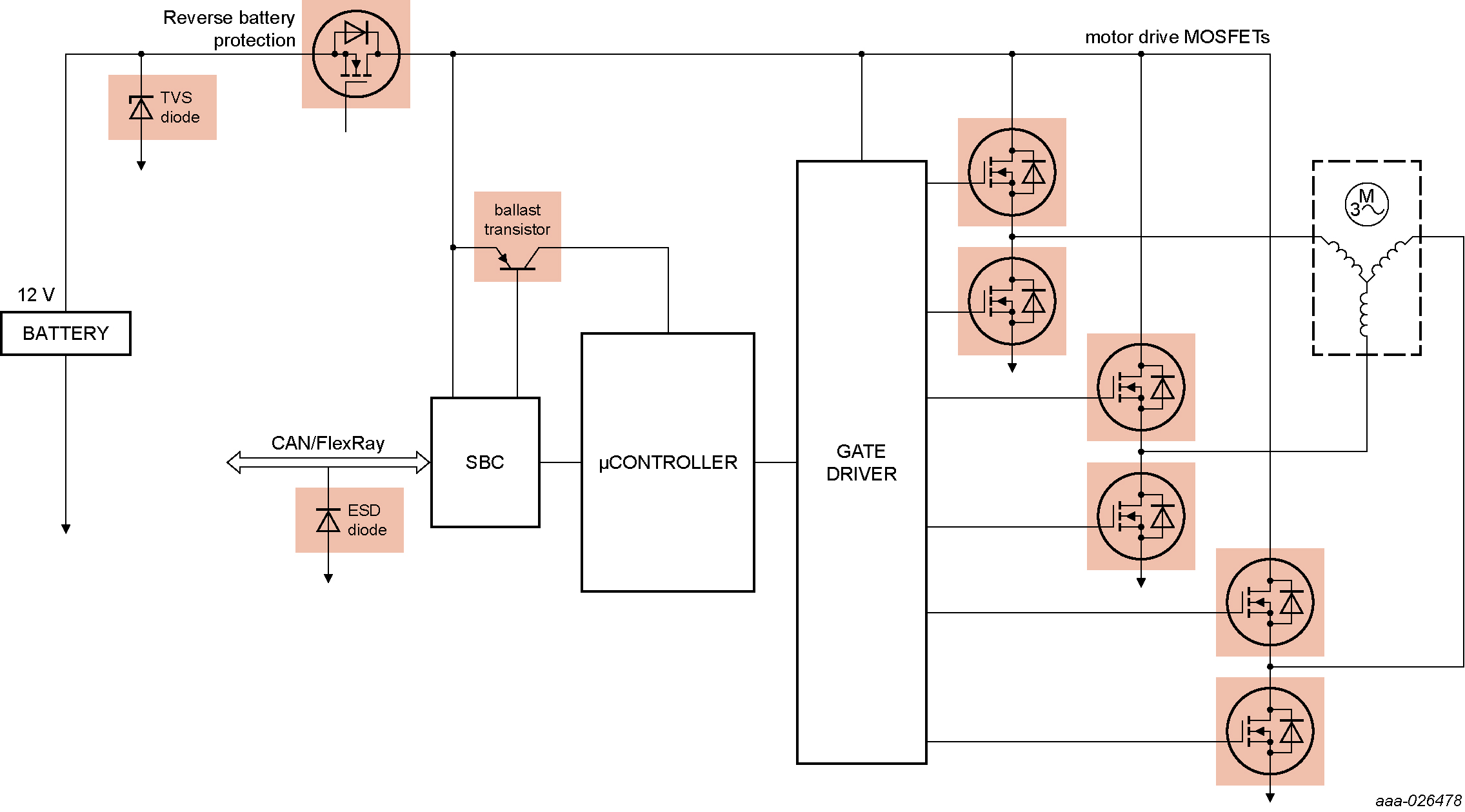

功能框图

设计考虑因素

50 W – 400 W无刷直流电机驱动

  • BLDC因其可控性和低功耗性能成为首选

通过采用PWM模式运行的6个MOSFET进行控制

  • 重点关注开关损耗和EMC性能
  • 平均可节省功耗100 W
  • 每行驶100 km可减少约0.24 kg的二氧化碳排放。

应用场合面临较高的环境温度
