Automotive DFN packages

The compact package standard with side-wettable flanks for small and light automotive diodes and transistors

To satisfy an ever-increasing number of electronic functions, vehicles require more semiconductor components. Nexperia’s AEC-Q101 qualified leadless packages with side-wettable flanks help save space and minimize weight while ensuring the performance and efficiency of these components – especially at high temperatures. Automotive DFN (Discretes Flat No-leads) options exists across the full portfolio of diodes, bipolar transistors, and MOSFETs.

See the Nexperia package selector page, (filter on SWF to see packages with side-wettable flanks).

Related Blog posts:

Youtube video

Introducing Automotive DFN packages

Automotive DFN packages range - high component density

Table 1.
Package

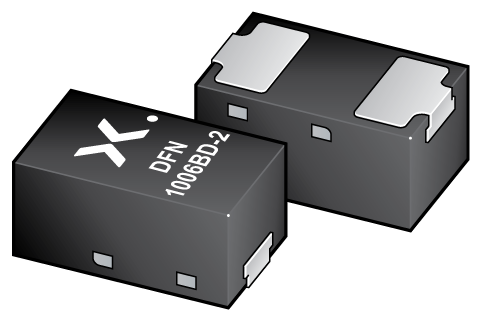

DFN1006BD-2

(SOD882BD-2)

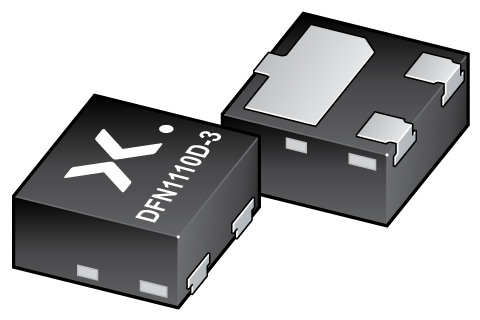

DFN1110D-3

(SOT8015)

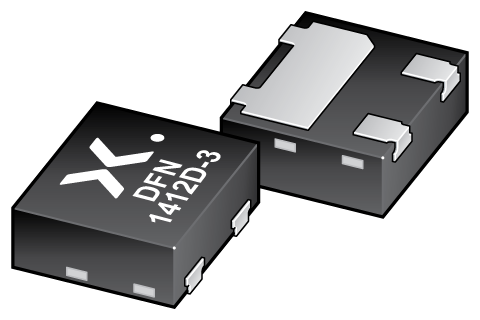

DFN1412D-3

(SOT8009)

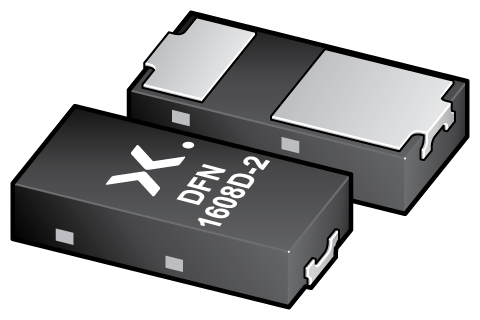

DFN1608D-2

(SOD1608)

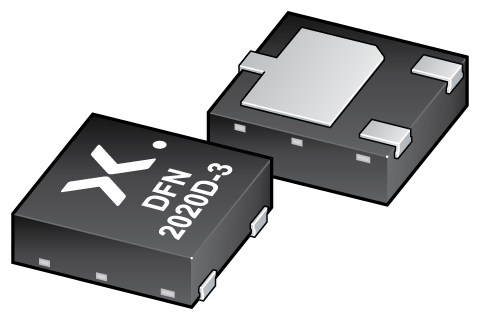

DFN2020D-3

(SOT1061D)

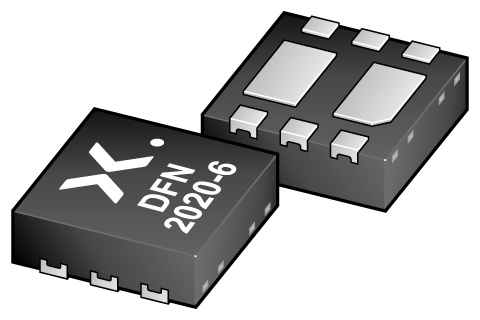

DFN2020D-6

(SOT1118D)

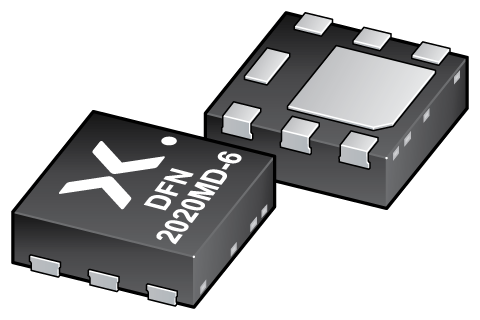

DFN2020MD-6

(SOT1220)

Package area mm²

0.6

1.1

1.68

1.28

4

4

4

Body size (l x w x h) (mm)

1.0 x 0.6 x 0.5

1.1 x 1.0 x 0.5

1.4 x 1.2 x 0.5

1.6 x 0.8 x 0.37

2.0 x 2.0 x 0.6

2.0 x 2.0 x 0.6

2.0 x 2.0 x 0.6

Rth(j-sp) (K/W)

46

60

53

20

16

25

5

Space efficient designs

DFN offers an equal electrical performance on a smaller footprint compared to standard SMD packages.




  • Ultra-compact footprint
  • Very low height
  • AEC-Q101 qualified alternatives exist for all leaded SMD packages

High thermal performance

  • High power dissipation (Ptot)
  • Low operating temperature extending the total system lifetime
  • Tj = 175 °C capability

AOI capable and reliable

  • Side-wettable flanks for easy automated optical inspection (AOI)
  • Robust solder joints, high reliability

Products

ESD protection, TVS, filtering and signal conditioning

型号 描述 状态 快速访问
PESD2CANFD24U-QB ESD protection for In-vehicle networks Production
PESD2CANFD24U-QC ESD protection for In-vehicle networks Production
PESD2CANFD24V-QB ESD protection for In-vehicle networks Production
PESD2CANFD24V-QC ESD protection for In-vehicle networks Production
PESD2CANFD27U-QB ESD protection for In-vehicle networks Production
PESD2CANFD27U-QC ESD protection for In-vehicle networks Production
PESD2CANFD27V-QB ESD protection for In-vehicle networks Production
PESD2CANFD27V-QC ESD protection for In-vehicle networks Production

Bipolar transistors

型号 描述 状态 快速访问
BC53-16PAS 45 V/60 V/80 V, 1 A PNP medium power transistors Production
BC53PAS 45 V/60 V/80 V, 1 A PNP medium power transistors Production
BC54-10PAS 45 V/60 V/80 V, 1 A NPN medium power transistors Production
BC54-16PAS 45 V/60 V/80 V, 1 A NPN medium power transistors Production
BC54PAS 45 V/60 V/80 V, 1 A NPN medium power transistors Production
BC55-10PAS 45 V/60 V/80 V, 1 A NPN medium power transistors Production
BC55-16PAS 45 V/60 V/80 V, 1 A NPN medium power transistors Production
BC55PAS 45 V/60 V/80 V, 1 A NPN medium power transistors Production
BC56-10PAS 45 V/60 V/80 V, 1 A NPN medium power transistors Production
BC56-16PAS 45 V/60 V/80 V, 1 A NPN medium power transistors Production
BC56PAS 45 V/60 V/80 V, 1 A NPN medium power transistors Production
BC807-16QB 45 V, 500 mA PNP general-purpose transistors Development
BC807-25QB 45 V, 500 mA PNP general-purpose transistors Development
BC807-40QB 45 V, 500 mA PNP general-purpose transistors Development
BC817-16QB 45 V, 500 mA NPN general-purpose transistors Production
BC817-16QC 45 V, 500 mA NPN general-purpose transistors Production
BC817-25QB 45 V, 500 mA NPN general-purpose transistors Production
BC817-25QC 45 V, 500 mA NPN general-purpose transistors Production
BC817-40QB 45 V, 500 mA NPN general-purpose transistors Production
BC817-40QC 45 V, 500 mA NPN general-purpose transistors Production
BC847AQB 45 V, 100 mA NPN general-purpose transistor Production
BC847BQB 45 V, 100 mA NPN general-purpose transistor Production
BC847CQB 45 V, 100 mA NPN general-purpose transistor Production
BC857AQB 45 V, 100 mA PNP general-purpose transistors Qualification
BC857BQB 45 V, 100 mA PNP general-purpose transistors Qualification
BC857CQB 45 V, 100 mA PNP general-purpose transistors Qualification
NCR320PAS 250 mA LED driver in DFN2020D-6 Production
NCR321PAS 250 mA LED driver in DFN2020D-6 Production
NCR420PAS 150 mA LED driver in DFN2020D-6 Production
NCR421PAS 150 mA LED driver in DFN2020D-6 Production
PBSS4160PANPS 60 V, 1 A NPN/NPN low VCEsat (BISS) transistor Production
PBSS4160PANS 60 V, 1 A NPN/NPN low VCEsat (BISS) transistor Production
PBSS4220PANS 20 V, 2 A NPN/NPN low VCEsat BISS double transistor Production
PBSS4260PANPS 60 V, 2 A NPN/PNP low VCEsat (BISS) double transistor Production
PBSS4260PANS 60 V, 2 A NPN/NPN low VCEsat (BISS) double transistor Production
PBSS4330PAS 30 V, 3 A NPN low VCEsat (BISS) transistor Production
PBSS4360PAS 60 V, 3 A NPN low VCEsat (BISS) transistor Production
PBSS5160PAPS 60 V, 1 A PNP/PNP low VCEsat (BISS) transistor Production
PBSS5220PAPS 20V, 2 A PNP/PNP low VCEsat (BISS) double transistor Production
PBSS5255PAPS 55V, 2A PNP/PNP low VCEsat (BISS) double transistor Production
PBSS5260PAPS 60 V, 2 A PNP/PNP low VCEsat (BISS) double transistor Production
PBSS5330PAS 30 V, 3 A PNP low VCEsat (BISS) transistor Production
PBSS5360PAS 60 V, 3A PNP low VCEsat (BISS) transistor Production

Automotive qualified products (AEC-Q100/Q101)

型号 描述 状态 快速访问
BAS16LS High-speed switching diode Production
BAS21LS High-speed switching diode Production
BAS40LS General-purpose Schottky diode Production
BAV99QC Dual series high-speed switching diodes Production
BC53-16PAS 45 V/60 V/80 V, 1 A PNP medium power transistors Production
BC53PAS 45 V/60 V/80 V, 1 A PNP medium power transistors Production
BC54-10PAS 45 V/60 V/80 V, 1 A NPN medium power transistors Production
BC54-16PAS 45 V/60 V/80 V, 1 A NPN medium power transistors Production
BC54PAS 45 V/60 V/80 V, 1 A NPN medium power transistors Production
BC55-10PAS 45 V/60 V/80 V, 1 A NPN medium power transistors Production
BC55-16PAS 45 V/60 V/80 V, 1 A NPN medium power transistors Production
BC55PAS 45 V/60 V/80 V, 1 A NPN medium power transistors Production
BC56-10PAS 45 V/60 V/80 V, 1 A NPN medium power transistors Production
BC56-16PAS 45 V/60 V/80 V, 1 A NPN medium power transistors Production
BC56PAS 45 V/60 V/80 V, 1 A NPN medium power transistors Production
BC807-16QB 45 V, 500 mA PNP general-purpose transistors Development
BC807-25QB 45 V, 500 mA PNP general-purpose transistors Development
BC807-40QB 45 V, 500 mA PNP general-purpose transistors Development
BC817-16QB 45 V, 500 mA NPN general-purpose transistors Production
BC817-16QC 45 V, 500 mA NPN general-purpose transistors Production
BC817-25QB 45 V, 500 mA NPN general-purpose transistors Production
BC817-25QC 45 V, 500 mA NPN general-purpose transistors Production
BC817-40QB 45 V, 500 mA NPN general-purpose transistors Production
BC817-40QC 45 V, 500 mA NPN general-purpose transistors Production
BC847AQB 45 V, 100 mA NPN general-purpose transistor Production
BC847BQB 45 V, 100 mA NPN general-purpose transistor Production
BC847CQB 45 V, 100 mA NPN general-purpose transistor Production
BC857AQB 45 V, 100 mA PNP general-purpose transistors Qualification
BC857BQB 45 V, 100 mA PNP general-purpose transistors Qualification
BC857CQB 45 V, 100 mA PNP general-purpose transistors Qualification
BUK4D110-20P 20 V, P-channel Trench MOSFET Production
BUK4D16-20 20 V, N-channel Trench MOSFET Production
BUK4D38-20P 20 V, P-channel Trench MOSFET Production
BUK4D60-30 30 V, N-channel Trench MOSFET Production
BUK6D120-40E 40 V, N-channel Trench MOSFET Production
BUK6D120-60P 60 V, P-channel Trench MOSFET Production
BUK6D125-60E 60 V, N-channel Trench MOSFET Production
BUK6D210-60E 60 V, N-channel Trench MOSFET Production
BUK6D22-30E 30 V, N-channel Trench MOSFET Production
BUK6D23-40E 40 V, N-channel Trench MOSFET Production
BUK6D230-80E 80 V, N-channel Trench MOSFET Production
BUK6D30-40E 40 V, N-channel Trench MOSFET Production
BUK6D38-30E 30 V, N-channel Trench MOSFET Production
BUK6D385-100E 100 V, N-channel Trench MOSFET Production
BUK6D43-40P 40 V, P-channel Trench MOSFET Production
BUK6D43-60E 60 V, N-channel Trench MOSFET Production
BUK6D56-60E 60 V, N-channel Trench MOSFET Production
BUK6D72-30E 30 V, N-channel Trench MOSFET Production
BUK6D77-60E 60 V, N-channel Trench MOSFET Production
BUK6D81-80E 80 V, N-channel Trench MOSFET Production
BUK7D25-40E 40 V, N-channel Trench MOSFET Production
BUK7D36-60E 60 V, N-channel Trench MOSFET Production
BUK9D23-40E 40 V, N-channel Trench MOSFET Production
BZX884S-B2V4 Voltage regulator diodes Production
BZX884S-B2V7 Voltage regulator diodes Production
BZX884S-B3V0 Voltage regulator diodes Production
BZX884S-B3V3 Voltage regulator diodes Production
BZX884S-B3V6 Voltage regulator diodes Production
BZX884S-B3V9 Voltage regulator diodes Production
BZX884S-B4V3 Voltage regulator diodes Production
BZX884S-B4V7 Voltage regulator diodes Production
BZX884S-B5V1 Voltage regulator diodes Production
BZX884S-B5V6 Voltage regulator diodes Production
BZX884S-B6V2 Voltage regulator diodes Production
BZX884S-B6V8 Voltage regulator diodes Production
BZX884S-C2V4 Voltage regulator diodes Production
BZX884S-C2V7 Voltage regulator diodes Production
BZX884S-C3V0 Voltage regulator diodes Production
BZX884S-C3V3 Voltage regulator diodes Production
BZX884S-C3V6 Voltage regulator diodes Production
BZX884S-C3V9 Voltage regulator diodes Production
BZX884S-C4V3 Voltage regulator diodes Production
BZX884S-C4V7 Voltage regulator diodes Production
BZX884S-C5V1 Voltage regulator diodes Production
BZX884S-C5V6 Voltage regulator diodes Production
BZX884S-C6V2 Voltage regulator diodes Production
BZX884S-C6V8 Voltage regulator diodes Production
NCR320PAS 250 mA LED driver in DFN2020D-6 Production
NCR321PAS 250 mA LED driver in DFN2020D-6 Production
NCR420PAS 150 mA LED driver in DFN2020D-6 Production
NCR421PAS 150 mA LED driver in DFN2020D-6 Production
PBSS4160PANPS 60 V, 1 A NPN/NPN low VCEsat (BISS) transistor Production
PBSS4160PANS 60 V, 1 A NPN/NPN low VCEsat (BISS) transistor Production
PBSS4220PANS 20 V, 2 A NPN/NPN low VCEsat BISS double transistor Production
PBSS4260PANPS 60 V, 2 A NPN/PNP low VCEsat (BISS) double transistor Production
PBSS4260PANS 60 V, 2 A NPN/NPN low VCEsat (BISS) double transistor Production
PBSS4330PAS 30 V, 3 A NPN low VCEsat (BISS) transistor Production
PBSS4360PAS 60 V, 3 A NPN low VCEsat (BISS) transistor Production
PBSS5160PAPS 60 V, 1 A PNP/PNP low VCEsat (BISS) transistor Production
PBSS5220PAPS 20V, 2 A PNP/PNP low VCEsat (BISS) double transistor Production
PBSS5255PAPS 55V, 2A PNP/PNP low VCEsat (BISS) double transistor Production
PBSS5260PAPS 60 V, 2 A PNP/PNP low VCEsat (BISS) double transistor Production
PBSS5330PAS 30 V, 3 A PNP low VCEsat (BISS) transistor Production
PBSS5360PAS 60 V, 3A PNP low VCEsat (BISS) transistor Production
PESD2CANFD24U-QB ESD protection for In-vehicle networks Production
PESD2CANFD24U-QC ESD protection for In-vehicle networks Production
PESD2CANFD24V-QB ESD protection for In-vehicle networks Production
PESD2CANFD24V-QC ESD protection for In-vehicle networks Production
PESD2CANFD27U-QB ESD protection for In-vehicle networks Production
PESD2CANFD27U-QC ESD protection for In-vehicle networks Production
PESD2CANFD27V-QB ESD protection for In-vehicle networks Production
PESD2CANFD27V-QC ESD protection for In-vehicle networks Production
PMDPB56XNEA 30 V, dual N-channel Trench MOSFET Production
PMEG2005EPK 20 V, 0.5 A low VF MEGA Schottky barrier rectifier Production
PMEG2010EPAS 20 V, 1 A low VF MEGA Schottky barrier rectifier Production
PMEG2010EPK 20 V, 1 A low VF MEGA Schottky barrier rectifier Production
PMEG2015EPK 20 V, 1.5 A low VF MEGA Schottky barrier rectifier Production
PMEG2020CPAS 20 V, 2 A low VF dual MEGA Schottky barrier rectifier Production
PMEG2020EPAS 20 V, 2 A low VF MEGA Schottky barrier rectifier Production
PMEG2020EPK 20 V, 2 A low VF MEGA Schottky barrier rectifier Production
PMEG3020CPAS 30 V, 2 A low VF dual MEGA Schottky barrier rectifier Production
PMEG3020EPAS 30 V, 2 A low VF MEGA Schottky barrier rectifier Production
PMEG4005EPK 40 V, 0.5 A low VF MEGA Schottky barrier rectifier Production
PMEG4010EPK 40 V, 1 A low VF MEGA Schottky barrier rectifier Production
PMEG4015EPK 40 V, 1.5 A low VF MEGA Schottky barrier rectifier Production
PMEG4020EPAS 40 V, 2 A low VF MEGA Schottky barrier rectifier Production
PMEG4020EPK 40 V, 2 A low VF MEGA Schottky barrier rectifier Production
PMEG6010CPAS 60 V, 1 A low VF dual MEGA Schottky barrier rectifier Production
PMPB100XPEA 20 V, P-channel Trench MOSFET Production
PMPB10XNEA 20 V, N-channel Trench MOSFET Production
PMPB12UNEA 20 V, N-channel Trench MOSFET Production
PMPB13XNEA 30 V, N-channel Trench MOSFET Production
PMPB15XPA 12 V, P-channel Trench MOSFET Production
PMPB20XNEA 20 V, N-channel Trench MOSFET Production
PMPB20XPEA 20 V, P-channel Trench MOSFET Production
PMPB215ENEA 80 V, single N-channel Trench MOSFET Production
PMPB23XNEA 20 V, N-channel Trench MOSFET Production
PMPB27EPA 30 V, P-channel Trench MOSFET Production
PMPB29XNEA 30 V, N-channel Trench MOSFET Production
PMPB29XPEA 20 V, P-channel Trench MOSFET Production
PMPB43XPEA 20 V, P-channel Trench MOSFET Production
PMPB48EPA 30 V, P-channel Trench MOSFET Production
PMPB55ENEA 60 V, N-channel Trench MOSFET Production
PMPB55XNEA 30 V, N-channel Trench MOSFET Production
PMPB85ENEA 60 V, single N-channel Trench MOSFET Production
PMPB95ENEA 80 V, single N-channel Trench MOSFET Production

Diodes

型号 描述 状态 快速访问
BAS16LS High-speed switching diode Production
BAS21LS High-speed switching diode Production
BAS40LS General-purpose Schottky diode Production
BAV99QC Dual series high-speed switching diodes Production
BZX884S-B2V4 Voltage regulator diodes Production
BZX884S-B2V7 Voltage regulator diodes Production
BZX884S-B3V0 Voltage regulator diodes Production
BZX884S-B3V3 Voltage regulator diodes Production
BZX884S-B3V6 Voltage regulator diodes Production
BZX884S-B3V9 Voltage regulator diodes Production
BZX884S-B4V3 Voltage regulator diodes Production
BZX884S-B4V7 Voltage regulator diodes Production
BZX884S-B5V1 Voltage regulator diodes Production
BZX884S-B5V6 Voltage regulator diodes Production
BZX884S-B6V2 Voltage regulator diodes Production
BZX884S-B6V8 Voltage regulator diodes Production
BZX884S-C2V4 Voltage regulator diodes Production
BZX884S-C2V7 Voltage regulator diodes Production
BZX884S-C3V0 Voltage regulator diodes Production
BZX884S-C3V3 Voltage regulator diodes Production
BZX884S-C3V6 Voltage regulator diodes Production
BZX884S-C3V9 Voltage regulator diodes Production
BZX884S-C4V3 Voltage regulator diodes Production
BZX884S-C4V7 Voltage regulator diodes Production
BZX884S-C5V1 Voltage regulator diodes Production
BZX884S-C5V6 Voltage regulator diodes Production
BZX884S-C6V2 Voltage regulator diodes Production
BZX884S-C6V8 Voltage regulator diodes Production
PMEG2005EPK 20 V, 0.5 A low VF MEGA Schottky barrier rectifier Production
PMEG2010EPAS 20 V, 1 A low VF MEGA Schottky barrier rectifier Production
PMEG2010EPK 20 V, 1 A low VF MEGA Schottky barrier rectifier Production
PMEG2015EPK 20 V, 1.5 A low VF MEGA Schottky barrier rectifier Production
PMEG2020CPAS 20 V, 2 A low VF dual MEGA Schottky barrier rectifier Production
PMEG2020EPAS 20 V, 2 A low VF MEGA Schottky barrier rectifier Production
PMEG2020EPK 20 V, 2 A low VF MEGA Schottky barrier rectifier Production
PMEG3020CPAS 30 V, 2 A low VF dual MEGA Schottky barrier rectifier Production
PMEG3020EPAS 30 V, 2 A low VF MEGA Schottky barrier rectifier Production
PMEG4005EPK 40 V, 0.5 A low VF MEGA Schottky barrier rectifier Production
PMEG4010EPK 40 V, 1 A low VF MEGA Schottky barrier rectifier Production
PMEG4015EPK 40 V, 1.5 A low VF MEGA Schottky barrier rectifier Production
PMEG4020EPAS 40 V, 2 A low VF MEGA Schottky barrier rectifier Production
PMEG4020EPK 40 V, 2 A low VF MEGA Schottky barrier rectifier Production
PMEG6010CPAS 60 V, 1 A low VF dual MEGA Schottky barrier rectifier Production

MOSFETs

型号 描述 状态 快速访问
BUK4D110-20P 20 V, P-channel Trench MOSFET Production
BUK4D16-20 20 V, N-channel Trench MOSFET Production
BUK4D38-20P 20 V, P-channel Trench MOSFET Production
BUK4D60-30 30 V, N-channel Trench MOSFET Production
BUK6D120-40E 40 V, N-channel Trench MOSFET Production
BUK6D120-60P 60 V, P-channel Trench MOSFET Production
BUK6D125-60E 60 V, N-channel Trench MOSFET Production
BUK6D210-60E 60 V, N-channel Trench MOSFET Production
BUK6D22-30E 30 V, N-channel Trench MOSFET Production
BUK6D23-40E 40 V, N-channel Trench MOSFET Production
BUK6D230-80E 80 V, N-channel Trench MOSFET Production
BUK6D30-40E 40 V, N-channel Trench MOSFET Production
BUK6D38-30E 30 V, N-channel Trench MOSFET Production
BUK6D385-100E 100 V, N-channel Trench MOSFET Production
BUK6D43-40P 40 V, P-channel Trench MOSFET Production
BUK6D43-60E 60 V, N-channel Trench MOSFET Production
BUK6D56-60E 60 V, N-channel Trench MOSFET Production
BUK6D72-30E 30 V, N-channel Trench MOSFET Production
BUK6D77-60E 60 V, N-channel Trench MOSFET Production
BUK6D81-80E 80 V, N-channel Trench MOSFET Production
BUK7D25-40E 40 V, N-channel Trench MOSFET Production
BUK7D36-60E 60 V, N-channel Trench MOSFET Production
BUK9D23-40E 40 V, N-channel Trench MOSFET Production
PMDPB56XNEA 30 V, dual N-channel Trench MOSFET Production
PMPB100XPEA 20 V, P-channel Trench MOSFET Production
PMPB10XNEA 20 V, N-channel Trench MOSFET Production
PMPB12UNEA 20 V, N-channel Trench MOSFET Production
PMPB13XNEA 30 V, N-channel Trench MOSFET Production
PMPB15XPA 12 V, P-channel Trench MOSFET Production
PMPB20XNEA 20 V, N-channel Trench MOSFET Production
PMPB20XPEA 20 V, P-channel Trench MOSFET Production
PMPB215ENEA 80 V, single N-channel Trench MOSFET Production
PMPB23XNEA 20 V, N-channel Trench MOSFET Production
PMPB27EPA 30 V, P-channel Trench MOSFET Production
PMPB29XNEA 30 V, N-channel Trench MOSFET Production
PMPB29XPEA 20 V, P-channel Trench MOSFET Production
PMPB43XPEA 20 V, P-channel Trench MOSFET Production
PMPB48EPA 30 V, P-channel Trench MOSFET Production
PMPB55ENEA 60 V, N-channel Trench MOSFET Production
PMPB55XNEA 30 V, N-channel Trench MOSFET Production
PMPB85ENEA 60 V, single N-channel Trench MOSFET Production
PMPB95ENEA 80 V, single N-channel Trench MOSFET Production

Documentation

文件名称 标题 类型 日期
nexperia_report_aoi_inspection_dfn_201808 Automatic Optical Inspection of DFN Components Report 2018-09-03
Nexperia_document_leaflet_DFN2020MD-6_2019 DFN2020MD-6 Leadless package with side-wettable flanks Leaflet 2019-09-27

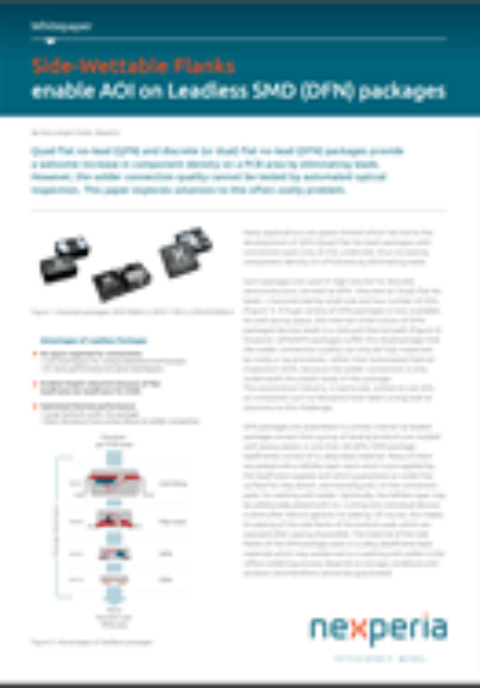

Nexperia_document_whitepaper_Side-WettableFlanks_AOI_201911 Side-Wettable Flanks enable AOI on Leadless SMD (DFN) packages White paper 2020-04-15
Nexperia_Document_Whitepaper-Side-Wettable-Flanks_CHN 可湿性侧面 White paper 2020-04-15
RS2634_DFN1110D-3_Combi DFN1110D-3_Combi_image Marcom graphics 2020-06-09

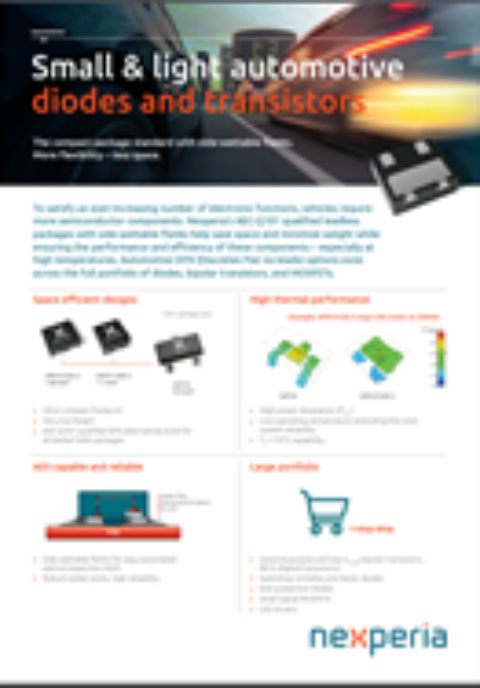

Nexperia_asset_document_brochure_autoDFN_2020 Small & light automotive diodes and transistors Brochure 2020-06-19
Nexperia_asset_document_brochure_autoDFN_2020_CN_LR 小巧轻便的汽车 二极管和晶体管 Brochure 2020-07-03
Nexperia_document_whitepaper_DFN_Wave_Soldering_2020 Whitepaper: Can DFNs be successfully wave soldered? White paper 2020-09-01

如果您有支持方面的疑问,请告知我们。如需获得设计支持,请告知我们并填写应答表,我们会尽快回复您。

联系我们获得进一步支持。

Datasheets (90)

文件名称 标题 类型 日期
BAS16LS High-speed switching diode Data sheet 2020-09-07
BAS21LS High-speed switching diode Data sheet 2020-09-07
BAS40LS General-purpose Schottky diode Data sheet 2020-08-07
BAV99QC Dual series high-speed switching diodes Data sheet 2020-05-25
BC51_52_53PAS_SER 45 V/60 V/80 V, 1 A PNP medium power transistors Data sheet 2018-08-28
BC54_55_56PAS_SER 45V/60V/80V, 1A NPN medium power transistors Data sheet 2018-08-28
BC817QB_SER 45 V, 500 mA NPN general-purpose transistors Data sheet 2020-10-28
BC817QC_SER 45 V, 500 mA NPN general-purpose transistors Data sheet 2020-10-28
BC847XQB_SER 45 V, 100 mA NPN general-purpose transistor Data sheet 2020-01-24
BUK4D110-20P 20 V, P-channel Trench MOSFET Data sheet 2020-07-07
BUK4D16-20 20 V, N-channel Trench MOSFET Data sheet 2020-07-09
BUK4D38-20P 20 V, P-channel Trench MOSFET Data sheet 2020-07-09
BUK4D60-30 30 V, N-channel Trench MOSFET Data sheet 2020-07-07
BUK6D120-40E 40 V, N-channel Trench MOSFET Data sheet 2019-04-29
BUK6D120-60P 60 V, P-channel Trench MOSFET Data sheet 2018-04-03
BUK6D125-60E 60 V, N-channel Trench MOSFET Data sheet 2019-04-29
BUK6D210-60E 60 V, N-channel Trench MOSFET Data sheet 2019-04-29
BUK6D22-30E 30 V, N-channel Trench MOSFET Data sheet 2019-04-10
BUK6D23-40E 40 V, N-channel Trench MOSFET Data sheet 2017-12-13
BUK6D230-80E 80 V, N-channel Trench MOSFET Data sheet 2019-04-29
BUK6D30-40E 40 V, N-channel Trench MOSFET Data sheet 2020-03-11
BUK6D38-30E 30 V, N-channel Trench MOSFET Data sheet 2019-04-12
BUK6D385-100E 100 V, N-channel Trench MOSFET Data sheet 2019-04-29
BUK6D43-40P 40 V, P-channel Trench MOSFET Data sheet 2017-12-20
BUK6D43-60E 60 V, N-channel Trench MOSFET Data sheet 2017-12-13
BUK6D56-60E 60 V, N-channel Trench MOSFET Data sheet 2019-04-03
BUK6D72-30E 30 V, N-channel Trench MOSFET Data sheet 2019-04-29
BUK6D77-60E 60 V, N-channel Trench MOSFET Data sheet 2019-04-04
BUK6D81-80E 80 V, N-channel Trench MOSFET Data sheet 2019-04-04
BUK7D25-40E 40 V, N-channel Trench MOSFET Data sheet 2017-12-13
BUK7D36-60E 60 V, N-channel Trench MOSFET Data sheet 2020-03-11
BUK9D23-40E 40 V, N-channel Trench MOSFET Data sheet 2017-12-13
BZX884S_SER Voltage regulator diodes Data sheet 2020-07-13
NCR320PAS_NCR321PAS 250 mA LED driver in DFN2020D-6 Data sheet 2020-05-13
NCR420PAS_NCR421PAS 150 mA LED driver in DFN2020D-6 Data sheet 2020-05-13
PBSS4160PANPS 60 V, 1 A NPN/NPN low VCEsat (BISS) transistor Data sheet 2017-05-04
PBSS4160PANS 60 V, 1 A NPN/NPN low VCEsat (BISS) transistor Data sheet 2017-05-04
PBSS4220PANS 20 V, 2 A NPN/NPN low VCEsat BISS double transistor Data sheet 2017-05-04
PBSS4260PANPS 60 V, 2 A NPN/PNP low VCEsat (BISS) double transistor Data sheet 2017-03-21
PBSS4260PANS 60 V, 2 A NPN/NPN low VCEsat (BISS) double transistor Data sheet 2017-05-04
PBSS4330PAS 30 V, 3 A NPN low VCEsat (BISS) transistor Data sheet 2017-05-22
PBSS4360PAS 60 V, 3 A NPN low VCEsat (BISS) transistor Data sheet 2020-06-29
PBSS5160PAPS 60 V, 1 A PNP/PNP low VCEsat (BISS) transistor Data sheet 2017-05-22
PBSS5220PAPS 20V, 2 A PNP/PNP low VCEsat (BISS) double transistor Data sheet 2017-05-04
PBSS5255PAPS 55V, 2A PNP/PNP low VCEsat (BISS) double transistor Data sheet 2017-05-04
PBSS5260PAPS 60 V, 2 A PNP/PNP low VCEsat (BISS) double transistor Data sheet 2017-05-04
PBSS5330PAS 30 V, 3 A PNP low VCEsat (BISS) transistor Data sheet 2017-05-22
PBSS5360PAS 60 V, 3A PNP low VCEsat (BISS) transistor Data sheet 2017-05-04
PESD2CANFD24U-QB ESD protection for In-vehicle networks Data sheet 2020-09-30
PESD2CANFD24U-QC ESD protection for In-vehicle networks Data sheet 2020-09-30
PESD2CANFD24V-QB ESD protection for In-vehicle networks Data sheet 2020-09-30
PESD2CANFD24V-QC ESD protection for In-vehicle networks Data sheet 2020-09-30
PESD2CANFD27U-QB ESD protection for In-vehicle networks Data sheet 2020-09-30
PESD2CANFD27U-QC ESD protection for In-vehicle networks Data sheet 2020-09-30
PESD2CANFD27V-QB ESD protection for In-vehicle networks Data sheet 2020-09-30
PESD2CANFD27V-QC ESD protection for In-vehicle networks Data sheet 2020-09-30
PMDPB56XNEA 30 V, dual N-channel Trench MOSFET Data sheet 2017-03-20
PMEG2005EPK 20 V, 0.5 A low VF MEGA Schottky barrier rectifier Data sheet 2020-06-29
PMEG2010EPAS 20 V, 1 A low VF MEGA Schottky barrier rectifier Data sheet 2017-05-04
PMEG2010EPK 20 V, 1 A low VF MEGA Schottky barrier rectifier Data sheet 2020-06-29
PMEG2015EPK 20 V, 1.5 A low VF MEGA Schottky barrier rectifier Data sheet 2020-06-29
PMEG2020CPAS 20 V, 2 A low VF dual MEGA Schottky barrier rectifier Data sheet 2017-05-04
PMEG2020EPAS 20 V, 2 A low VF MEGA Schottky barrier rectifier Data sheet 2017-05-04
PMEG2020EPK 20 V, 2 A low VF MEGA Schottky barrier rectifier Data sheet 2017-05-22
PMEG3020CPAS 30 V, 2 A low VF dual MEGA Schottky barrier rectifier Data sheet 2017-05-04
PMEG3020EPAS 30 V, 2 A low VF MEGA Schottky barrier rectifier Data sheet 2017-05-04
PMEG4005EPK 40 V, 0.5 A low VF MEGA Schottky barrier rectifier Data sheet 2020-04-30
PMEG4010EPK 40 V, 1 A low VF MEGA Schottky barrier rectifier Data sheet 2018-01-18
PMEG4015EPK 40 V, 1.5 A low VF MEGA Schottky barrier rectifier Data sheet 2020-06-29
PMEG4020EPAS 40 V, 2 A low VF MEGA Schottky barrier rectifier Data sheet 2017-05-04
PMEG4020EPK 40 V, 2 A low VF MEGA Schottky barrier rectifier Data sheet 2017-05-22
PMEG6010CPAS 60 V, 1 A low VF dual MEGA Schottky barrier rectifier Data sheet 2017-05-04
PMPB100XPEA 20 V, P-channel Trench MOSFET Data sheet 2019-11-13
PMPB10XNEA 20 V, N-channel Trench MOSFET Data sheet 2018-03-27
PMPB12UNEA 20 V, N-channel Trench MOSFET Data sheet 2018-03-26
PMPB13XNEA 30 V, N-channel Trench MOSFET Data sheet 2018-09-10
PMPB15XPA 12 V, P-channel Trench MOSFET Data sheet 2018-03-27
PMPB20XNEA 20 V, N-channel Trench MOSFET Data sheet 2017-03-20
PMPB20XPEA 20 V, P-channel Trench MOSFET Data sheet 2018-03-27
PMPB215ENEA 80 V, single N-channel Trench MOSFET Data sheet 2017-05-04
PMPB23XNEA 20 V, N-channel Trench MOSFET Data sheet 2018-03-27
PMPB27EPA 30 V, P-channel Trench MOSFET Data sheet 2018-03-27
PMPB29XNEA 30 V, N-channel Trench MOSFET Data sheet 2018-09-10
PMPB29XPEA 20 V, P-channel Trench MOSFET Data sheet 2018-03-27
PMPB43XPEA 20 V, P-channel Trench MOSFET Data sheet 2018-03-27
PMPB48EPA 30 V, P-channel Trench MOSFET Data sheet 2018-03-27
PMPB55ENEA 60 V, N-channel Trench MOSFET Data sheet 2017-05-09
PMPB55XNEA 30 V, N-channel Trench MOSFET Data sheet 2019-11-15
PMPB85ENEA 60 V, single N-channel Trench MOSFET Data sheet 2017-05-04
PMPB95ENEA 80 V, single N-channel Trench MOSFET Data sheet 2017-05-04
