RC low pass filters with integrated protection

No room for compromise

Containing a lot of power and characterized by very fast rise-times, electrostatic discharge (ESD) pulses are a major cause of damage and malfunction in electronic equipment. We offer an extensive range of ESD protection devices that deliver outstanding protection against ESD and other voltage-induced transient pulses.

参数搜索

RC low pass filters with integrated protection
数据加载中,请稍候...
参数搜索不可用。

产品

型号 描述 状态 快速访问
IP4251/52/53/54-TTL Integrated 4-, 6- and 8-channel passive filter network with ESD protection ACT
IP4251CZ16-8-TTL Integrated 4-, 6- and 8-channel passive filter network with ESD protection Production
IP4252CZ16-8-TTL Integrated 4-, 6- and 8-channel passive filter network with ESD protection Production
IP4252CZ8-4-TTL Integrated 4-, 6- and 8-channel passive filter network with ESD protection Production
IP4254CZ16-8-TTL Integrated 4-, 6- and 8-channel passive filter network with ESD protection Production
IP4254CZ8-4-TTL Integrated 4-, 6- and 8-channel passive filter network with ESD protection Production
IP4256CZ5-W Single and dual-channel passive filter network with ESD protection Production

Outline 3d (1)

文件名称 标题 类型 日期

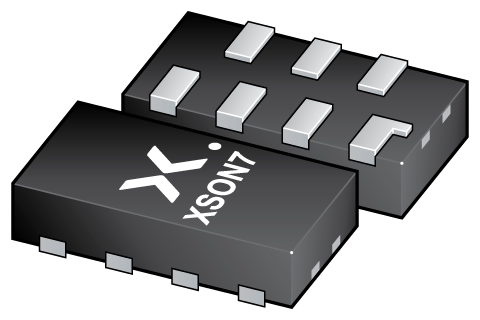

sot1358-1_3d plastic, extremely thin small outline package; 7 terminals; 0.5 mm pitch; 1.1 mm x 2.1 mm x 0.5 mm body Outline 3d 2017-01-30

Selection guide (1)

文件名称 标题 类型 日期
Nexperia_Selection_guide_2020 Nexperia Selection Guide 2020 Selection guide 2020-01-31

User manual (1)

文件名称 标题 类型 日期
Nexperia_document_book_ESDApplicationHandbook_2018 ESD Application Handbook - Protection concepts, testing and simulation for modern interfaces User manual 2018-08-29
