Key features
- Fully 10BASE-T1s and 100/1000BASE-T1 OPEN Alliance compliant
- Low capacitance down to < 0.4 pF
- ESD protection up to 30 kV (IEC 61000-4-2, contact)
- ESD robustness 15 kV at 1000 discharges
- High trigger voltage: Vt1 = 100 V min
- Available in various package options
- AEC-Q101 qualified / automotive grade
Key applications
- ESD protection for in-vehicle network lines
- In-automotive environments
- OPEN Alliance 10BASE-T1s and 100/1000BASE-T1 Ethernet
Latest products
Featured documents
Latest news and blogs
%20(1).png)
.6059742227349987662.jpg)
Latest videos
参数搜索
Automotive ESD Ethernet
数据加载中，请稍候...参数搜索不可用。
产品
| 型号 | 描述 | 状态 | 快速访问 |
|---|---|---|---|

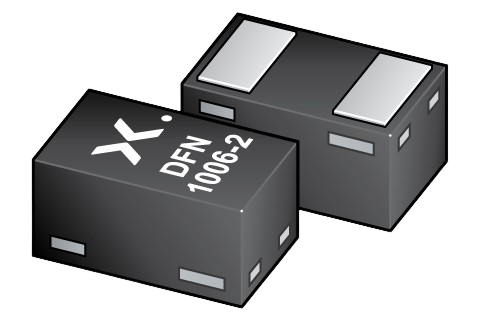

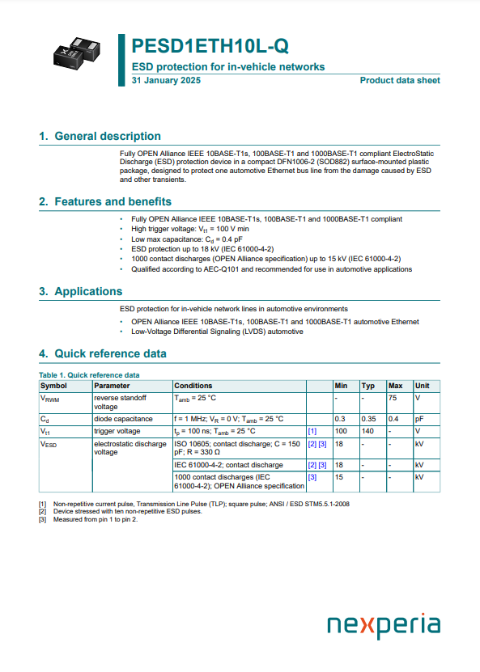

| PESD1ETH10L-Q | ESD protection for in-vehicle networks | Production | |

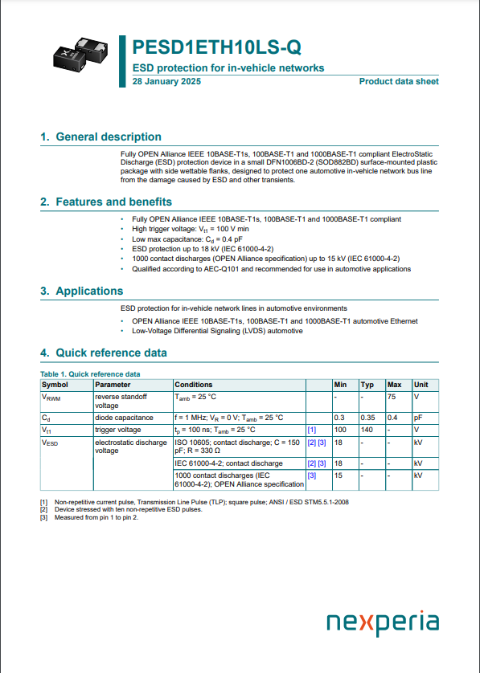

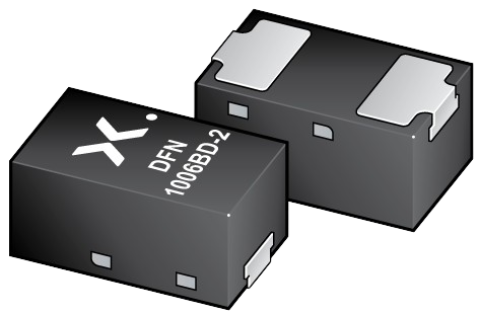

| PESD1ETH10LS-Q | ESD protection for in-vehicle networks | Production | |
| PESD1ETH1GLS-Q | ESD protection for In-vehicle networks | Production | |
| PESD1ETH1GXLS-Q | ESD protection for In-vehicle networks | Production | |
| PESD2ETH-AD | Ultra low capacitance double rail-to-rail ESD protection diode | Production | |
| PESD2ETH100-T | ESD protection for In-vehicle networks | Production | |
| PESD2ETH100T-Q | ESD protection for in-vehicle networks | Production | |
| PESD2ETH1G-T | ESD protection for In-vehicle networks | Production | |
| PESD2ETH1GT-Q | ESD protection for in-vehicle networks | Production | |
| PESD2ETH1GXT-Q | ESD protection for In-vehicle networks | Production | |
| PESD2ETHAD-Q | Ultra low capacitance double rail-to-rail ESD protection diode | Production | |
| PESD2ETHAX-Q | Ultra low capacitance double rail-to-rail ESD protection diode | Production | |
| PESD2ETHD-Q | Ultra low capacitance double rail-to-rail ESD protection diode | Production | |
| PESD2ETHX-Q | Ultra low capacitance double rail-to-rail ESD protection diode | Production | |
| PESD5V0U1BA-Q | Low capacitance bidirectional ESD protection diode | Production | |
| PRTR5V0U4D-Q | Ultra low capacitance quadruple rail-to-rail ESD protection | Production |
Visit our documentation center for all documentation
Application note (1) |
|||
|---|---|---|---|
| 文件名称 | 标题 | 类型 | 日期 |

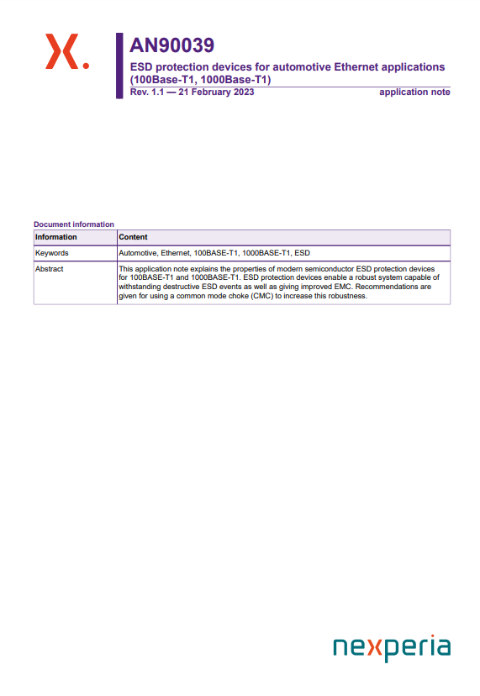

| AN90039.pdf | ESD protection devices for automotive Ethernet applications (100Base-T1, 1000Base-T1) | Application note | 2023-02-21 |
Brochure (3) |
|||
| 文件名称 | 标题 | 类型 | 日期 |
| Nexperia_ESD_Automotive_Application_Guide.pdf | ESD Automotive Application Guide | Brochure | 2023-02-16 |
| Nexperia_document_brochure_application-guide_automotive.pdf | Nexperia Application Guide Automotive | Brochure | 2019-05-31 |
| Nexperia_document_brochure_ESD-Protection-Applications_022017.pdf | ESD Protection Application guide | Brochure | 2018-12-21 |
Leaflet (1) |
|||
| 文件名称 | 标题 | 类型 | 日期 |

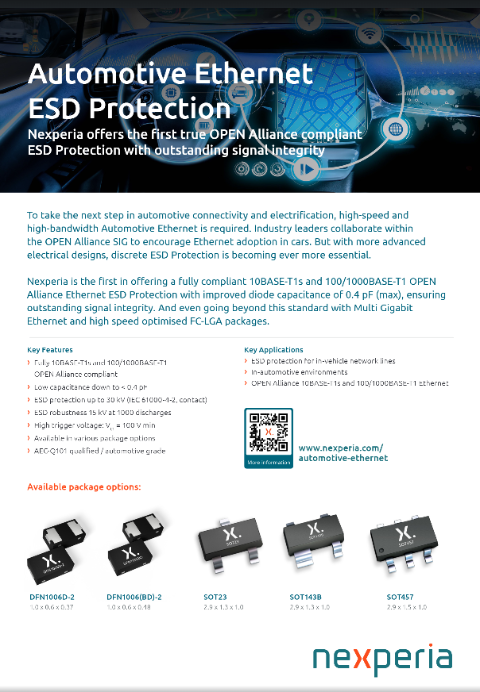

| Leaflet_CHN_Automotive_Ethernet_Leaflet.pdf | Leaflet_CHN_Automotive_Ethernet_Leaflet | Leaflet | 2025-02-19 |
Marcom graphics (1) |
|||
| 文件名称 | 标题 | 类型 | 日期 |
| SOT23_mk.png | plastic, surface-mounted package; 3 terminals; 1.9 mm pitch; 2.9 mm x 1.3 mm x 1 mm body | Marcom graphics | 2017-01-28 |
Selection guide (1) |
|||
| 文件名称 | 标题 | 类型 | 日期 |
| nexperia_automotive_selection_guide_LR_201902.pdf | Nexperia Automotive Selection Guide 2019 | Selection guide | 2019-02-18 |
White paper (3) |
|||
| 文件名称 | 标题 | 类型 | 日期 |
| 2025-0001_NEX_045_Factsheet_OPEN_alliance_10BASE_T1s_100BASE-T1_and_1000BASE-T1_v01.pdf | 2025-0001 NEX_045_Factsheet_OPEN_alliance_10BASE_T1s_100BASE-T1_and_1000BASE-T1_v01 | White paper | 2025-02-19 |
| Nexperia_Whitepaper_ESD_Discharge_Current_Measurement_Using_SEED_CN.pdf | 运用SEED设计方法，根据开放技术联盟100BASE-T1规范 | White paper | 2020-02-26 |

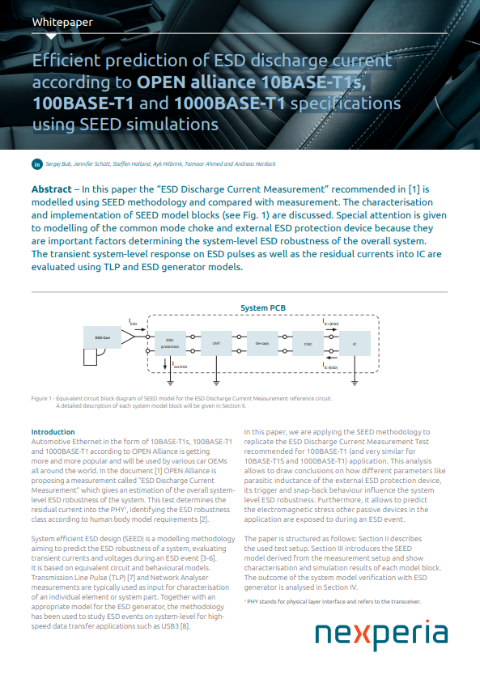

| Nexperia_Whitepaper_ESD_Discharge_Current_Measurement_Using_SEED_1.pdf | Efficient prediction of ESD discharge current according to OPEN Alliance 100BASE-T1 specification using SEED | White paper | 2019-12-19 |
