Power protection

Maximize safe operation and minimize downtime

Today’s electronic systems require a mix of power path protections including inrush current and output overload, reverse current and reverse polarity, short circuit, and overvoltage and over temperature. Nexperia provides a range of power path protection solutions, engineered for exceptional robustness and reliability while maintaining industry-standard compatibility with added efficiency and innovation.

针对物联网、可穿戴设备、消费电子、汽车和工业应用领域电源需求持续增长的趋势，Nexperia一直致力于提供电源IC，助力实现创新、高效的解决方案，尤其是帮助客户降低BOM成本并提高系统性能。为此，我们面向物联网和消费电子应用推出电池管理和能源采集解决方案，这也是我们在该领域推出的第一个产品系列。

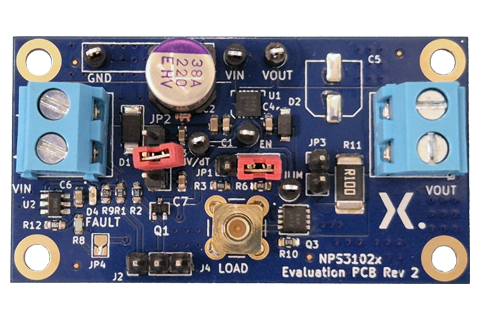

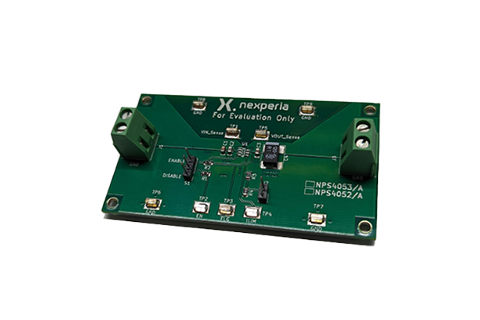

Evaluation boards

Featured documents

产品

型号 描述 状态 快速访问
NID5100 1.2 V to 5.5 V, 1.5 A input polarity protected, low quiescent current ideal diode ACT
NID5100GW 1.2 V to 5.5 V, 1.5 A input polarity protected, low quiescent current ideal diode Production
NID5100GW-Q100 1.2 V to 5.5 V, 1.5 A input polarity protected, low quiescent current ideal diode Production
NID5100-Q100 1.2 V to 5.5 V, 1.5 A input polarity protected, low quiescent current ideal diode ACT
NID5100GW-Q100 1.2 V to 5.5 V, 1.5 A input polarity protected, low quiescent current ideal diode Production
NPS1000 0.5 V to 1.0 V, 1.5 A peak, 11 mΩ, load switch ACT
NPS1000UP 0.5 V to 1.0 V, 1.5 A peak, 11 mΩ, load switch Production
NPS1001 0.5 V to 1.8 V, 1.5 A peak, 12 mΩ, load switch ACT
NPS1001UP 0.5 V to 1.8 V, 1.5 A peak, 12 mΩ, load switch Production
NPS3102 12 V, 2 A to 13.5 A, 17 mΩ eFuse ACT
NPS3102AGB 12 V, 2 A to 13.5 A, 17 mΩ eFuse Production
NPS3102BGB 12 V, 2 A to 13.5 A, 17 mΩ eFuse Production
NPS4001 5.5 V, 55 mOhm load switch with current limitation ACT
NPS4001GV 5.5 V, 55 mOhm load switch with current limitation Production
NPS4053 5.5 V, 55 mOhm load switch with precision adjustable current limit ACT
NPS4053GH 5.5 V, 55 mOhm load switch with precision adjustable current limit Production
NPS4053GH-Q100 5.5 V, 55 mOhm load switch with precision adjustable current limit Production
NPS4053GV 5.5 V, 55 mOhm load switch with precision adjustable current limit Production
NPS4053GV-Q100 5.5 V, 55 mOhm load switch with precision adjustable current limit Production
NPS4053-Q100 5.5 V, 55 mOhm load switch with precision adjustable current limit ACT
NPS4053GH-Q100 5.5 V, 55 mOhm load switch with precision adjustable current limit Production
NPS4053GV-Q100 5.5 V, 55 mOhm load switch with precision adjustable current limit Production
NPS4069 5.5 V, 55 mOhm load switch with current limitation ACT
NPS4069GV 5.5 V, 55 mOhm load switch with current limitation Production
NID1100GV 1.5 V to 5.5 V, 1.5 A, compact ideal diode with forward voltage blocking Production
NID1101UP 1.5 V to 5.5 V, 1.5 A, compact ideal diode with forward voltage blocking Qualification
NPS3005GP 0.5 V to 5.5 V, 6 A, 15 mOhm, single channel load switch with soft start Production
NPS3005GP-Q100 0.5 V to 5.5 V, 6 A, 15 mOhm, single channel load switch with soft start Production
Visit our documentation center for all documentation

Leaflet (3)
文件名称 标题 类型 日期
nexperia_load_switch_family_2025.pdf NPS4053, NPS1001, NPS4069, NPS4001 Load Switch leaflet Leaflet 2025-08-08
nexperia_leaflet_efuse.pdf 12 V, 2 A-13.5 A (17 mΩ) eFuse for Enterprise, Communications and Storage Leaflet 2025-01-21

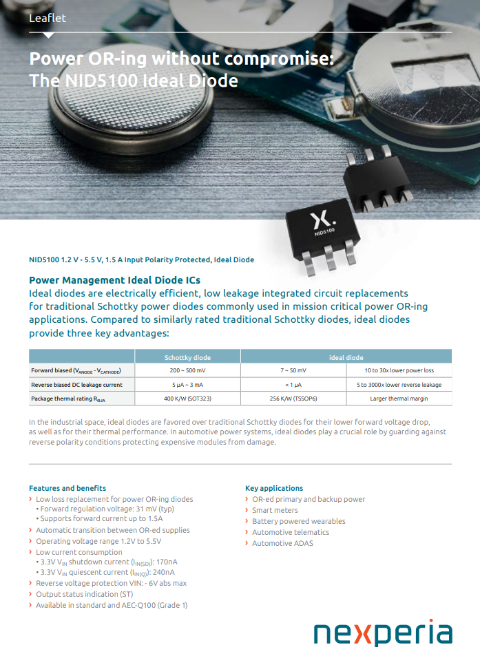

nexperia_leaflet_ideal-diode.pdf NID5100 Ideal Diode Leaflet 2024-08-09

Outline 3d (1)
文件名称 标题 类型 日期

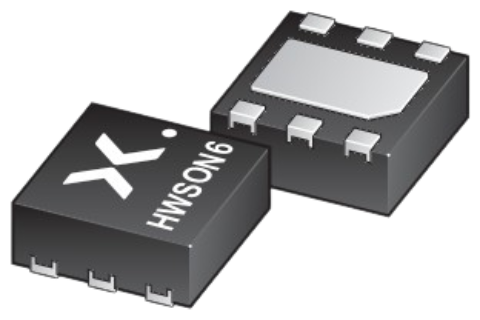

sot8044-1_3d.png HWSON6; SOT8044-1; Plastic thermal enhanced very very thin Small Outline packages, no leads; 6 terminals; 0.65 mm pitch; 2.0 mm x 2.0 mm x 0.75 mm body Outline 3d 2025-04-10
