成对晶体管

提升了电流镜和差分放大器电路的性能

通过在电流镜和差分放大器应用中使用我们的成对晶体管,无需进行成本高昂的额外调整。与标准双晶体管相比,它们能够确保提供准确的基极-发射极电压和电流增益匹配,且内部完全隔离。

主要特性和优势

  • 电流增益匹配至10%、5%或2%
  • 提升了电流镜和差分放大器电路的性能
  • 基极-发射极电压匹配至2 mV
  • 标准双晶体管的简易替代选择(BCM系列)
  • 可选择标准双晶体管引脚配置或应用优化型引脚配置
  • 简化电路板布局(PMP系列)
  • 5引脚类型采用共发射极配置
  • 无需进行成本高昂的额外调整
  • 多种小型、极小型和超小型封装

关键应用

  • 电流镜
  • 差分和仪表放大器
  • 对数放大器
  • 比较器

参数搜索

Matched pair transistors
数据加载中,请稍候...
参数搜索不可用。

产品

型号 描述 状态 快速访问
BCM856BS 65 V, 100 mA PNP/PNP matched double transistors Production
BCM847DS NPN/NPN matched double transistor Production
BCM847QAS 45 V, 100 mA NPN/NPN matched double transistors Production
BCV62B PNP general-purpose double transistors Production
BCV62C PNP general-purpose double transistors Production
BCM53DS 80 V, 1 A PNP/PNP matched double transistors Production
BCV61B NPN general-purpose double transistors Production
BCV61 NPN general-purpose double transistors Production
BCV61C NPN general-purpose double transistors Production
BCM56DS 80 V, 1 A NPN/NPN matched double transistors Production
BCM61B NPN/NPN matched double transistor Production
BCV61A NPN general-purpose double transistors Production
BCM857QAS 45 V, 100 mA PNP/PNP matched double transistors Production
BCM62B PNP/PNP matched double transistor Production
BCM857DS PNP/PNP matched double transistor Production
BCV62 PNP general-purpose double transistors Production
BCV62A PNP general-purpose double transistors Production
PMP4201Y 45 V, 100 mA NPN/NPN matched double transistor Production
PMP5501Y 45 V, 100 mA PNP/PNP matched double transistor Production
PMP4501QAS 45 V, 100 mA NPN/NPN matched double transistors Production
PMP4201G 45 V, 100 mA NPN/NPN matched double transistor NotForDesignIn
PMP4501Y 45 V, 100 mA NPN/NPN matched double transistor Production
PMP5201G 45 V, 100 mA PNP/PNP matched double transistor NotForDesignIn
PMP5501QAS 45 V, 100 mA PNP/PNP matched double transistors Production
PMP5501G EndOfLife
BCM846BSH-Q 65 V, 100 mA NPN/NPN matched double transistor Production
BCM856BSH-Q 65 V, 100 mA PNP/PNP matched double transistor Production
BCM857BSH-Q 45 V, 100 mA PNP/PNP matched double transistor Production
PMP3906AYS-Q 40 V, 200 mA PNP/PNP matched double transistor Production
BCM847BSH-Q 45 V, 100 mA NPN/NPN matched double transistor Production
PMP5201Y-Q 45 V, 100 mA PNP/PNP matched double transistor Production
BCM856DS-Q 65 V, 100 mA PNP/PNP matched double transistors Production
BCM846BS-Q NPN/NPN matched double transistor Production
BCM857BS-Q PNP/PNP matched double transistor Production
BCM847BS-Q NPN/NPN matched double transistor Production
PHPT610035NK NPN/NPN high power double bipolar transistor Production
PHPT610035PK PNP/PNP matched high power double bipolar transistor Production
PHPT610035PK-Q PNP/PNP matched high power double bipolar transistor Production
PHPT610035NK-Q NPN/NPN high power double bipolar transistor Production
Visit our documentation center for all documentation

Marcom graphics (1)

文件名称 标题 类型 日期

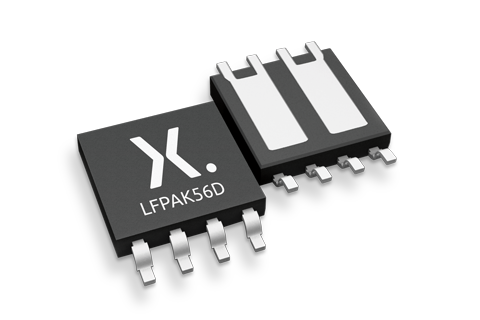

LFPAK56D_SOT1205_mk.png plastic, single ended surface mounted package (LFPAK56D); 8 leads; 1.27 mm pitch; 4.7 mm x 5.3 mm x 1.05 mm body Marcom graphics 2017-01-28
