单PNP型低VCEsat (BISS)晶体管

更小电路板空间、更高性能

全面的器件产品组合,帮助您更轻松地选择所需的解决方案。非常适合多种应用,可作为其他晶体管的小体积替代选择。

主要特性和优势

  • 低集电极-发射极饱和电压VCE(sat)及相应的电阻RCE(sat)(最低<30 mΩ)
  • 高集电极电流能力IC和ICM
  • 高集电极电流增益hFE(高IC
  • 时)更小电路板空间、更高性能
  • SOT89、SOT223、TO-126和DPAK等较大功率、中等功率晶体管的高性价比替代选择

关键应用

  • 中等功率外设驱动器,如风扇、马达
  • 适合DSC与移动电话的频闪闪光灯
  • 反向器应用,如TFT显示屏
  • LAN和ADSL系统的电源开关
  • 中等功率DC-DC转换

参数搜索

Low VCEsat (BISS) transistors single PNP
数据加载中,请稍候...
参数搜索不可用。

产品

型号 描述 状态 快速访问
PBSS5140T-Q 40 V, 1 A PNP low VCEsat transistor Production
PBSS5350Z-Q 50 V, 3 A PNP low VCEsat transistor Production
PBSS5250TH-Q 50 V, 2 A PNP low VCEsat (BISS) transistor Production
PBSS5350X 50 V, 3 A PNP low VCEsat transistor Production
PBSS301PD 20 V, 4 A PNP low VCEsat (BISS) transistor EndOfLife
PBSS305PD 100 V, 2 A PNP low V_CEsat (BISS) transistor EndOfLife
PBSS5320D 20 V low VCEsat PNP transistor Production
PBSS5250X 50 V, 2 A PNP low VCEsat transistor Production
PBSS3515MB 15 V, 0.5 A PNP low VCEsat (BISS) transistor EndOfLife
PBSS5350TH 50 V, 3 A PNP low VCEsat (BISS) transistor Production
PBSS9110Z 100 V, 1 A PNP low VCEsat (BISS) transistor Production
PBSS4032PD 30 V, 2.7 A PNP low VCEsat (BISS) transistor EndOfLife
PBSS5130T 30 V; 1 A PNP low VCEsat (BISS) transistor Production
PBSS9110X 100 V, 1 A PNP low VCEsat (BISS) transistor Production
PBSS5480X 80 V, 4 A PNP low VCEsat (BISS) transistor Production
PBSS5250T 50 V; 2 A PNP low VCEsat (BISS) transistor Production
PBSS301PZ 12 V, 5.7 A PNP low VCEsat (BISS) transistor EndOfLife
PBSS5140U 40 V low VCEsat PNP transistor Production
PBSS5230QA 30 V, 2 A PNP low VCEsat (BISS) transistor EndOfLife
PBSS5330PAS 30 V, 3 A PNP low VCEsat transistor Production
PBSS5130QA 30 V, 1 A PNP low VCEsat (BISS) transistor EndOfLife
PBSS5330X 30 V, 3 A PNP low VCEsat (BISS) transistor Production
PBSS5120T 20 V; 1 A PNP low VCEsat (BISS) transistor Production
PBSS3540M 40 V, 0.5 A PNP low VCEsat (BISS) transistor Production
PBSS5260QA 60 V, 1.7 A PNP low VCEsat (BISS) transistor Production
PBSS5240Z 40 V, 2 A PNP low VCEsat (BISS) transistor Production
PBSS9110Y 100 V, 1 A PNP low VCEsat (BISS) transistor EndOfLife
PBSS5160QA 60 V, 1 A PNP low VCEsat (BISS) transistor Production
PBSS3540MB 40 V, 0.5 A PNP low VCEsat (BISS) transistor Production
PBSS304PD 80 V, 3 A PNP low VCEsat (BISS) transistor EndOfLife
PBSS5240X 40 V, 2 A PNP low VCEsat (BISS) transistor Production
PBSS9110D 100 V, 1 A PNP low VCEsat (BISS) transistor EndOfLife
PBSS5320X 20 V, 3 A PNP low VCEsat (BISS) transistor Production
PBSS5240Y 40 V low VCEsat PNP transistor EndOfLife
PBSS5520X 20 V, 5 A PNP low VCEsat transistor Production
PBSS5360X 60 V, 3 A PNP low VCEsat (BISS) transistor Production
PBSS5350T-Q 50 V, 3 A PNP low VCEsat transistor Production
PBSS4041PX-Q 60 V, 5 A PNP low VCEsat transistor Development
PBSS5350D-Q 50 V, 3 A PNP low VCEsat transistor Production
PBSS5240T-Q 40 V, 2 A PNP low VCEsat transistor Production
PBSS4310PAS-Q 10 V, 3 A NPN low VCEsat transistor Production
PBSS9110T-Q 100 V, 1 A PNP low VCEsat transistor Production
PBSS304PX-Q 60 V, 4.2 A PNP low V<sub>CEsat</sub> transistor Production
PBSS303PX-Q 30 V, 5.1 A PNP low VCEsat transistor Production
PBSS5440D-Q 40 V, 4 A PNP low VCEsat transistor Production
PBSS5320T-Q 20 V, 3 A PNP low VCEsat transistor Production
PBSS5360PAS-Q 60 V, 3A PNP low VCEsat transistor Production
PBSS5220T-Q 20 V, 2 A PNP low VCEsat transistor Production
PBSS5540Z-Q 40 V low VCEsat PNP transistor Production
PBSS303PD-Q 60 V, 3 A PNP low VCEsat transistor Production
PBSS4021PT-Q 20 V, 3.5 A PNP low VCEsat transistor Production
PBSS5360Z-Q 60 V, 3 A PNP low VCEsat transistor Production
PBSS5160U-Q 60 V, 1 A PNP low VCEsat transistor Production
PBSS4041PZ-Q 60 V, 5.7 A PNP low VCEsat transistor Production
PBSS4032PX-Q 30 V, 4.2 A PNP low VCEsat transistor Production
PBSS306PX-Q 100 V, 3.7 A PNP low VCEsat transistor Production
PBSS5230T-Q 30 V, 2 A PNP low VCEsat transistor Production
PBSS4021PX-Q 20 V, 6.2 A PNP low VCEsat transistor Production
PBSS5250PAS-Q 50 V, 2 A PNP low VCEsat transistor Production
PBSS4041PT-Q 60 V, 2.7 A PNP low VCEsat transistor Production
PBSS5540X-Q 40 V, 5 A PNP low VCEsat transistor Production
PBSS5350PAS-Q 50 V, 3 A PNP low VCEsat transistor Production
PBSS304PZ-Q 60 V, 4.5 A PNP low VCEsat transistor Production
PBSS302PZ-Q 20 V, 5.5 A PNP low VCEsat transistor Production
PBSS4021PZ-Q 20 V, 6.6 A PNP low VCEsat transistor Production
PBSS302PX-Q 20 V, 5.1 A PNP low VCEsat transistor Production
PBSS305PZ-Q 80 V, 4.5 A PNP low VCEsat transistor Production
PBSS5330PAS-Q 30 V, 3 A PNP low VCEsat transistor Production
PBSS4032PZ-Q 30 V, 4.4 A PNP low VCEsat transistor Production
PBSS4032PT-Q 30 V, 2.4 A PNP low VCEsat transistor Production
PBSS5420D-Q 20 V, 4 A PNP low VCEsat transistor Production
PBSS302PD-Q 40 V, 4 A PNP low VCEsat transistor Production
PBSS303PZ-Q 30 V, 5.3 A PNP low VCEsat transistor Production
PBSS306PZ-Q 100 V, 4.1 A PNP low VCEsat transistor Production
PBSS301PX-Q 12 V, 5.3 A PNP low VCEsat transistor EndOfLife
PBSS305PX-Q 80 V, 4.0 A PNP low VCEsat transistor Production
BSR33PAS-Q 80 V, 1 A PNP medium power transistor Production
Visit our documentation center for all documentation

Marcom graphics (1)

文件名称 标题 类型 日期

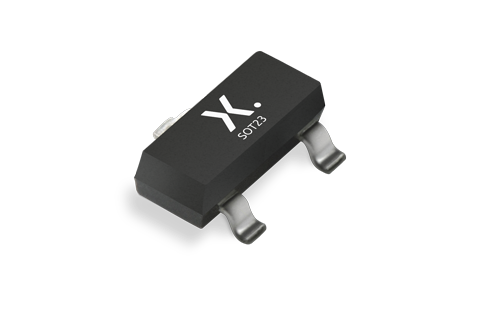

SOT23_mk.png plastic, surface-mounted package; 3 terminals; 1.9 mm pitch; 2.9 mm x 1.3 mm x 1 mm body Marcom graphics 2017-01-28
