RETs 100 mA双

RET晶体管可降低处理和开发成本,同时最大程度缩小空间

Nexperia面向标准小信号数字应用提供丰富的单双RET产品组合。

主要特性和优势

  • 一个晶体管和两个电阻集成在一个封装中
  • 降低处理和库存成本
  • 广泛的100 mA产品范围
  • 减少电路板空间
  • 500 mA产品组合
  • 缩短装配时间
  • 采用SOT363/457封装的完整双RET系列
  • 简化设计流程
  • 符合AEC-Q101标准
  • 减少焊点,提升系统可靠性

关键应用

  • 数字应用
  • 仪表盘
  • 发动机控制单元

参数搜索

RETs 100 mA double
数据加载中,请稍候...
参数搜索不可用。

产品

型号 描述 状态 快速访问
PEMB10; PUMB10 (Automotive) ACT
PUMB10 50 V, 100 mA PNP/PNP resistor-equipped double transistor; R1 = 2.2 kΩ, R2 = 47 kΩ Production
PEMB16; PUMB16 PNP/PNP resistor-equipped transistors; R1 = 22 kOhm, R2 = 47 kOhm ACT
PUMB16 PNP/PNP resistor-equipped transistors; R1 = 22 kOhm, R2 = 47 kOhm Production
PEMB19; PUMB19-[1480948216501] PNP/PNP resistor-equipped transistors; R1 = 22 kOhm, R2 = open ACT
PUMB19 PNP/PNP resistor-equipped transistors; R1 = 22 kOhm, R2 = open Production
PEMD17; PUMD17-[1480948216501] NPN/PNP resistor-equipped transistors; R1 = 47 kOhm, R2 = 22 kOhm ACT
PUMD17 NPN/PNP resistor-equipped transistors; R1 = 47 kOhm, R2 = 22 kOhm Production
PEMH7; PUMH7-[1480948216501] NPN/NPN resistor-equipped transistors; R1 = 4.7 kOhm, R2 = open ACT
PUMH7 NPN/NPN resistor-equipped transistors; R1 = 4.7 kOhm, R2 = open Production
PUML1 50 V, 200 mA NPN general-purpose transistor/100 mA NPN resistor-equipped transistor EndOfLife
PUMH15-Q NPN/NPN resistor-equipped double transistor; R1 = 4.7 kΩ, R2 = 4.7 kΩ Production
NHUMB9 80 V, 100 mA PNP/PNP resistor-equipped double transistors Production
NHUMD10 80 V, 100 mA NPN/PNP resistor-equipped double transistors Production
NHUMB10 80 V, 100 mA PNP/PNP resistor-equipped double transistors Production
NHUMD9 80 V, 100 mA NPN/PNP resistor-equipped double transistors Production
NHUMH9 80 V, 100 mA NPN/NPN resistor-equipped double transistor Production
NHUMB11 80 V, 100 mA PNP/PNP resistor-equipped double transistors Production
NHUMB2 80 V, 100 mA PNP/PNP resistor-equipped double transistors Production
NHUMH13 80 V, 100 mA NPN/NPN resistor-equipped double transistor Production
NHUMB1 80 V, 100 mA PNP/PNP resistor-equipped double transistors Qualification
NHUMB13 80 V, 100 mA PNP/PNP resistor-equipped double transistors Production
NHUMH10 80 V, 100 mA NPN/NPN resistor-equipped double transistor Production
PIMD2 50 V, 100 mA NPN/PNP resistor-equipped double transistor; R1 = 22 kΩ, R2 = 22 kΩ Production
NHUMD13 80 V, 100 mA NPN/PNP resistor-equipped double transistors Production
PQMH11 NPN/NPN resistor-equipped transistors; R1 = 10 kΩ, R2 = 10 kΩ Production
PQMD16 NPN/PNP resistor-equipped transistors; R1 = 22 kΩ, R2 = 47 kΩ Production
PRMD13 50 V, 100 mA NPN/PNP Resistor-Equipped double Transistors (RET) Production
PQMH2 NPN/NPN resistor-equipped transistors; R1 = 47 kΩ, R2 = 47 kΩ Production
PQMD2 NPN/PNP resistor-equipped transistors; R1 = 22 kΩ, R2 = 22 kΩ Production
PQMH9 NPN/NPN resistor-equipped transistors; R1 = 10 kΩ, R2 = 47 kΩ Production
PQMD13 NPN/PNP resistor-equipped transistors; R1 = 4.7 kΩ, R2 = 47 kΩ Production
PUMD30 50 V, 100 mA NPN/PNP resistor-equipped double transistor; R1 = 2.2 kΩ, R2 = open Production
PQMD12 NPN/PNP resistor-equipped transistors; R1 = 47 kΩ, R2 = 47 kΩ Production
PUMB14 PNP/PNP resistor-equipped transistors; R1 = 47 kOhm, R2 = open Production
PUMD20 50 V, 100 mA NPN/PNP resistor-equipped double transistor; R1 = 2.2 kΩ, R2 = 2.2 kΩ Production
PUMH24 NPN/NPN resistor-equipped transistors; R1 = 100 kOhm, R2 = 100 kOhm Production
PQMB11 PNP/PNP resistor-equipped transistors; R1 = 10 kΩ, R2 = 10 kΩ Production
PUMB17 PNP/PNP resistor-equipped transistors; R1 = 47 kOhm, R2 = 22 kOhm Production
PUMH4 50 V, 100 mA NPN/NPN resistor-equipped transistor; R1 = 10 kΩ, R2 = open Production
PUMH16 50 V, 100 mA NPN/NPN resistor-equipped transistor; R1 = 22 kΩ, R2 = 47 kΩ Production
PUMB18 PNP/PNP resistor-equipped transistors; R1 = 4.7 kΩ, R2 = 10 kΩ Production
PQMD10 NPN/PNP resistor-equipped transistors; R1 = 2.2 kΩ, R2 = 47 kΩ Production
PQMD3 NPN/PNP resistor-equipped transistors; R1 = 10 kΩ, R2 = 10 kΩ Production
PRMH13 50 V, 100 mA NPN/NPN Resistor-Equipped double Transistors (RET) Production
PRMB11 50 V, 100 mA PNP/PNP Resistor-Equipped double Transistors (RET) Production
PRMD3 50 V, 100 mA NPN/PNP Resistor-Equipped double Transistors (RET) Production
PQMH10 NPN/NPN resistor-equipped transistors; R1 = 2.2 kΩ, R2 = 47 kΩ Production
PRMH2 50 V, 100 mA NPN/NPN Resistor-Equipped double Transistors (RET) Production
PRMH10 50 V, 100 mA NPN/NPN Resistor-Equipped double Transistors (RET) Production
PRMD2 50 V, 100 mA NPN/PNP Resistor-Equipped double Transistors (RET) Production
PUMH30 NPN/NPN double resistor-equipped transistors; R1 = 2.2 kOhm, R2 = open Production
PUMH19 50 V, 100 mA NPN/NPN resistor-equipped transistor; R1 = 22 kΩ, R2 = open Production
PUMB9 PNP/PNP double Resistor-Equipped Transistor; R1 = 10 kΩ, R2 = 47 kΩ Production
PUMH17 NPN/NPN resistor-equipped transistors; R1 = 47 kOhm, R2 = 22 kOhm Production
PUMB1 PNP/PNP resistor-equipped transistors; R1 = 22 kΩ, R2 = 22 kΩ Production
PUMB10 50 V, 100 mA PNP/PNP resistor-equipped double transistor; R1 = 2.2 kΩ, R2 = 47 kΩ Production
PUMH18 50 V, 100 mA NPN/NPN resistor-equipped double transistor; R1 = 4.7 kΩ, R2 = 10 kΩ Production
PRMH11 50 V, 100 mA NPN/NPN Resistor-Equipped double Transistors (RET) Production
PRMH9 50 V, 100 mA NPN/NPN Resistor-Equipped double Transistors (RET) Production
PUMB19 PNP/PNP resistor-equipped transistors; R1 = 22 kOhm, R2 = open Production
PUMD14 50 V, 100 mA NPN/PNP resistor-equipped transistor; R1 = 47 kΩ, R2 = open Production
PUMB16 PNP/PNP resistor-equipped transistors; R1 = 22 kOhm, R2 = 47 kOhm Production
PUMB4 PNP/PNP resistor-equipped transistors; R1 = 10 kOhm, R2 = open Production
PUMD18 50 V, 100 mA NPN/PNP resistor-equipped double transistor; R1 = 4.7 kΩ, R2 = 10 kΩ Production
PUMD19 NPN/PNP resistor-equipped transistors; R1 = 22 kOhm, R2 = open Production
PUMB30 PNP/PNP double resistor-equipped transistors; R1 = 2.2 kOhm, R2 = open Production
PUMB3 50 V, 100 mA PNP/PNP resistor-equipped transistor; R1 = 4.7 kΩ, R2 = open Production
PUMB15 PNP/PNP resistor-equipped transistors; R1 = 4.7 kΩ, R2 = 4.7 kΩ Production
PUMH7 NPN/NPN resistor-equipped transistors; R1 = 4.7 kOhm, R2 = open Production
PUMH7H-Q 50 V, 100 mA NPN/NPN Resistor-Equipped double Transistor; R1 = 4.7 kΩ, R2 = open Production
PRMD10 50 V, 100 mA NPN/PNP Resistor-Equipped double Transistors (RET) Production
PUMD6H-Q 50 V, 100 mA NPN/PNP Resistor-Equipped double Transistor; R1 = 4.7 kΩ, R2 = open Production
PRMD12 50 V, 100 mA NPN/PNP Resistor-Equipped double Transistors (RET) Production
PUMH2-Q 50 V, 100 mA NPN/NPN resistor-equipped double transistor; R1 = 47 kΩ, R2 = 47 kΩ Production
PUMD17 NPN/PNP resistor-equipped transistors; R1 = 47 kOhm, R2 = 22 kOhm Production
PUMD10-Q NPN/PNP double Resistor-Equipped Transistor; R1 = 2.2 kΩ, R2 = 47 kΩ Production
PUMD4-Q 50 V, 100 mA NPN/PNP resistor-equipped double transistor; R1 = 10 kΩ, R2 = open Production
PUMH20 50 V, 100 mA NPN/NPN resistor-equipped double transistor; R1 = 2.2 kΩ, R2 = 2.2 kΩ Production
PUMB24 50 V, 20 mA PNP/PNP resistor-equipped transistor; R1 = 100 kΩ, R2 = 100 kΩ Production
PUMB20 50 V, 100 mA PNP/PNP resistor-equipped double transistor; R1 = 2.2 kΩ, R2 = 2.2 kΩ Production
PUMH10-Q NPN/NPN resistor-equipped double transistor; R1 = 2.2 kΩ, R2 = 47 kΩ Production
PUMD9-Q 50 V, 100 mA NPN/PNP resistor-equipped double transistor; R1 = 10 kΩ, R2 = 47 kΩ Production
PUMD15-Q 50 V, 100 mA NPN/PNP resistor-equipped double transistor; R1 = 4.7 kΩ, R2 = 4.7 kΩ Production
PUMD3-Q 50 V, 100 mA NPN/PNP resistor-equipped double transistor; R1 = 10 kΩ, R2 = 10 kΩ Production
PUMB3H-Q 50 V, 100 mA PNP/PNP Resistor-Equipped double Transistor; R1 = 4.7 kΩ, R2 = open Production
PUMD13-Q NPN/PNP resistor-equipped double transistor; R1 = 4.7 kΩ, R2 = 47 kΩ Production
PDTC114ET-Q 50 V, 100 mA NPN resistor-equipped transistor; R1 = 10 kΩ, R2 = 10 kΩ Production
PUMH9-Q 50 V, 100 mA NPN/NPN resistor-equipped double transistor; R1 = 10 kΩ, R2 = 47 kΩ Production
PUMB11-Q 50 V, 100 mA PNP/PNP resistor-equipped double transistors; R1 = 10 kΩ, R2 = 10 kΩ Production
PUMD16-Q 50 V, 100 mA NPN/PNP resistor-equipped double transistor; R1 = 22 kΩ, R2 = 47 kΩ Production
PUMD48-Q NPN/PNP resistor-equipped double transistor; R1 = 47 kΩ, R2 = 47 kΩ and R1 = 2.2 kΩ, R2 = 47 kΩ Production
PUMD12-Q NPN/PNP resistor-equipped double transistor; R1 = 47 kΩ, R2 = 47 kΩ Production
PUMB2-Q 50 V, 100 mA PNP/PNP resistor-equipped double transistor; R1 = 47 kΩ, R2 = 47 kΩ Production
PUMD2-Q 50 V, 100 mA NPN/PNP resistor-equipped double transistor; R1 = 22 kΩ, R2 = 22 kΩ Production
PUMH13-Q NPN/NPN double Resistor-Equipped Transistor (RET); R1= 4.7 kΩ, R2 = 47 kΩ Production
PUMH11-Q 50 V, 100 mA NPN/NPN resistor-equipped double transistor; R1 = 10 kΩ, R2 = 10 kΩ Production
PUMB13-Q PNP/PNP resistor-equipped double transistors; R1 = 4.7 kΩ, R2 = 47 kΩ Production
PUMH1-Q NPN/NPN resistor-equipped double transistor; R1 = 22 kΩ, R2 = 22 kΩ Production
PUMH14-Q 50 V, 100 mA NPN/NPN resistor-equipped transistor; R1 = 47 kΩ, R2 = open Production
PQMH13-Q NPN/NPN resistor-equipped double transistor; R1 = 4.7 kΩ, R2 = 47 kΩ Production
PUMD6-Q 50 V, 100 mA NPN/PNP Resistor-Equipped Transistor; R1 = 4.7 kΩ, R2 = open Production
NHUMD2-Q 80 V, 100 mA NPN/PNP resistor-equipped double transistors Production
NHUMH11-Q 80 V, 100 mA NPN/NPN resistor-equipped double transistors Production
NHUMD12-Q 80 V, 100 mA NPN/PNP resistor-equipped double transistors Production
NHUMD3-Q 80 V, 100 mA NPN/PNP resistor-equipped double transistors Production
NHUMH1-Q 80 V, 100 mA NPN/NPN resistor-equipped double transistors Production
NHUMH2-Q 80 V, 100 mA NPN/NPN resistor-equipped double transistors Production
PUMD24-Q 50 V, 20 mA NPN/PNP resistor-equipped double transistor; R1 = 100 kΩ, R2 = 100 kΩ Production
NHUMB13-Q 80 V, 100 mA PNP/PNP resistor-equipped double transistors Production
NHUMB9-Q 80 V, 100 mA PNP/PNP resistor-equipped double transistors Production
NHUMB10-Q 80 V, 100 mA PNP/PNP resistor-equipped double transistors Production
NHUMD10-Q 80 V, 100 mA NPN/PNP resistor-equipped double transistors Production
NHUMD13-Q 80 V, 100 mA NPN/PNP resistor-equipped double transistors Production
NHUMD9-Q 80 V, 100 mA NPN/PNP resistor-equipped double transistors Production
Visit our documentation center for all documentation

Marcom graphics (1)

文件名称 标题 类型 日期

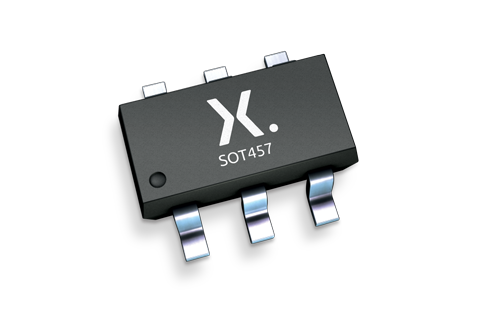

SOT457_mk.png plastic, surface-mounted package (SC-74) Marcom graphics 2018-11-26
