Step-down DC/DC converter

This circuit converts 12 V from the car battery to 5 V. It can be used to drive low power units such as the dashboard cluster.

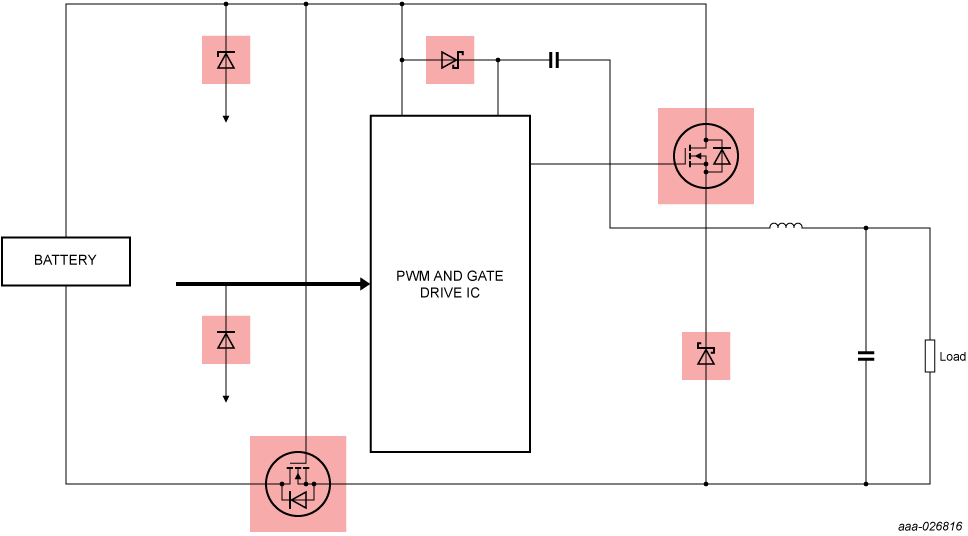

功能框图

设计考虑因素

  • 负载点非隔离式直流-直流
  • 异步降压转换电路
  • 经济型的双MOSFET设计
  • 标准效率
  • 电压下降,同时电流上升
